From Earth Magazine (Sara Pratt):

Not much happened around the Silverton Caldera in southwestern Colorado between 26 million years ago — when hydrothermal alteration of the caldera’s fractured granitic rocks left behind extensive veins of metal-rich ores — and 1871, when those deposits were discovered by prospectors. That’s when Silverton really started to boom. From 1871 to 1991 — when the Sunnyside Mine on the east side of Bonita Peak, the largest of dozens in the area, closed — an estimated $530 million worth of gold, silver, copper, lead and zinc were extracted from the Silverton Caldera. Most of the prospectors and mining companies that extracted that wealth are long gone, but a legacy of widespread environmental impacts remains…

A map of the results of the water and sediment sampling published by the Arizona Geological Survey indicates that only a handful of samples, mostly in the upper reaches of the watershed in the early days of the spill, had pollutant levels that exceeded maximums established for drinking water standards. While the Animas and San Juan rivers remained closed to use for irrigation, drinking water and recreation for about 10 days, the impact to agriculture along the banks of the river was minimal although future crop yields could suffer from the shutdown of irrigation, according to the University of Arizona researchers, led by Karletta Chief, a hydrologist and tribal extension specialist in the Department of Soil, Water and Environmental Science.

The report also put the 3-million-gallon spill into perspective. Each year, Silverton mines collectively discharge more than 330 million gallons of acid mine drainage into the Animas River watershed — more than 100 times the volume of the Gold King spill. In other words, the Animas River is experiencing a Gold King-sized spill, albeit less concentrated, roughly every three days.

After more than a century of largely unmitigated mining in the West, Gold King is just the latest example of the slow-motion environmental problem that has been unfolding in hundreds of mines and along thousands of kilometers of waterways. The EPA’s involvement in this particular spill, however, is an unusual twist that has brought controversy and attention, but at least, researchers say, it is shining a light on the larger problem of abandoned mine lands and the complexities surrounding their regulation and remediation.

In recent decades, the movement to remediate abandoned mine lands has gained momentum, and geoscientists from many different fields, from environmental scientists and hydrologists to geologists and mining engineers, are bringing their expertise to bear in characterizing abandoned mine sites, monitoring their environmental impacts, and assessing and prioritizing them for reclamation. But regulatory, legislative and funding issues remain — and a looming geoscience workforce crisis may leave future cleanup projects in the lurch.

The Impacts of Abandoned Mine Lands

Today, the U.S. has an estimated 400,000 to 500,000 abandoned mine sites mostly concentrated in eastern coal mining regions, like Pennsylvania and West Virginia, and western hardrock and coal mining regions like Colorado and Wyoming.

“Abandoned mines” are those abandoned before 1977 by owners who pulled up stakes when the veins tapped out or market economics changed, making the mine no longer profitable to work. Prior to 1977, when the Surface Mining Control and Reclamation Act (SMCRA) established the national Abandoned Mine Land Reclamation Program, few regulations held former mine owners accountable for the environmental consequences of abandoning a mine. SMCRA assesses fees on active coal mining operations to pay for remediation of abandoned coal mine sites. There is, however, no similar program for hardrock abandoned mines.

Abandoned mines can range from small prospect pits that merely pock the surface, to deep underground mines with kilometer upon kilometer of adits, shafts, drifts, stopes and tunnels. Such underground cavities often intersected the water table — the surface, or top, of water stored underground — requiring drainage tunnels or pumping during active mining. When mines were abandoned, however, the pumping often stopped, and drainage tunnels — which were graded to allow water, as well as loaded ore cars, to passively flow downslope — continued to drain.

Seeping groundwater can then pool in the mine and possibly escape into the surrounding environment, potentially leading to the most prominent and far-reaching of the many health, safety and environmental dangers posed by abandoned mines: the degradation of water resources by acid mine drainage.

Acid rock drainage can occur naturally, without mining, when rocks containing gold, silver, copper and other valuable metals — which also usually contain pyrite, an iron sulfide that, when exposed to air and water, creates sulfuric acid that further leaches metals from the rock — are exposed via weathering and erosion, fractures or exhumation. But mining accelerates and scales up this natural weathering, exposing vast amounts of fresh rock surfaces both inside and outside the mine to oxygen and water.

Until the 1930s, it was common practice to dump mine tailings directly into streams. When acid mine drainage flows into creeks or streams, it can impact reaches of a watershed far downstream, often leaving trails of iron-hydroxide deposits — “yellow boy” in mining terminology — that stain rocks and riverbanks red, yellow and orange. Today, tens of thousands of kilometers of U.S. rivers and streams are still affected by acid mine drainage.

In addition to water-quality impacts, other hazards that also require mitigation include spoils and tailings piles, open portals and shafts, underground fires, ground subsidence, explosive gases and rusting equipment, just to name a few.

In addition to Gold King, Colorado alone has more than 23,000 other abandoned mines posing varying degrees of threats. More than 6,000 have been remediated by the Colorado Division of Reclamation, Mining and Safety in cooperation with the Colorado Department of Public Health and Environment — but $66 million worth of unfunded projects remain listed on the national database of abandoned mine lands. Other states have similar backlogs.

In Pennsylvania, the state most impacted by acid mine drainage and with a long history of remediating it, abandoned mines discharge 300 million gallons of acid mine drainage per day, affecting more than 8,800 kilometers of streams, says Eric Cavazza, director of the state’s Bureau of Abandoned Mine Reclamation and past president of the National Association of Abandoned Mine Land Programs.

The Watershed Approach

The problem may seem vast and intractable, but the science of acid mine drainage is well understood. And, over the last few decades, a well-stocked toolbox of mitigation techniques has been developed, including treating acid mine drainage waters with lime (calcium carbonate) to buffer the water’s pH to normal levels and channeling mine discharges through settling ponds to allow metals to precipitate.

The bigger challenge is determining where and how to allocate limited resources, says Geoffrey Plumlee, a geochemist with USGS in Denver who testified before Congress in November 2015 on the role geoscientists can play in assessing and prioritizing remediation of abandoned mines.

In his testimony, Plumlee emphasized the importance of involving geoscience expertise at every stage: identifying and assessing sites, determining remediation options, and prioritizing projects based on the potential return. The task is figuring out which sites pose the greatest hazard and possess the greatest potential for improvement, he says.

Plumlee cites the example of Colorado’s Summitville Mine, a hardrock gold mine about 100 kilometers southeast of Silverton, where mining had occurred on and off since the late 1800s. In the 1980s, open-pit mining began using a new cyanide-leaching technique to dissolve gold from lower-grade ores. Almost from the beginning, heavy-metal discharges, pH levels lower than 3, and cyanide leakage plagued the operation.

In 1992, the mining company declared bankruptcy and was unable to meet its remediation responsibilities. In 1994, to prevent a major spill into the Alamosa River, the state of Colorado asked the EPA to designate it a Superfund site and take over cleanup, the cost of which has since exceeded $100 million.

The ore geology at Summitville — massive sulfide-rich volcanic deposits, with no underlying carbonates to help buffer and neutralize acidity — “was basically a geologic recipe for extreme acid rock drainage,” Plumlee says. Meanwhile, the ore geology at other mines can result in discharges near drinking-water quality. Although not all mine drainage is acidic, it can still carry substantial amounts of toxic elements.

“Not all mine drainage is created equal,” Plumlee says. “This is why understanding the geology of the deposits is so important to helping predict mine drainage chemistry.” That is just one way geoscientists can help prioritize different sites for cleanup. Another example of how geoscience may be brought to bear is the interdisciplinary “watershed approach,” exemplified in a 10-year pilot study of the effects of more than a century of historical mining in two watersheds: Boulder Creek in Montana and the Animas River in Colorado, which includes Gold King. In the comprehensive study, which ran from 1997 to 2007, researchers examined “the geology and geochemistry of rock and sediment, the hydrology and water chemistry of streams and groundwater, and the diversity and health of aquatic and terrestrial organisms” in each watershed.

In the study, undertaken when the USGS implemented a new program in cooperation with federal land-management agencies called the Abandoned Mine Lands Initiative, researchers inventoried mine sites, analyzed an array of water, rock and mine waste samples, and characterized the geologic conditions controlling acidity and the release of toxic metals.

The results of the study, published in a 2007 report edited by USGS scientists Stanley E. Church, Paul von Guerard and Susan E. Finger, demonstrated the full potential of a comprehensive geotechnical assessment of watersheds impacted by mining, Plumlee says. Eight years later, that report became a vital resource for the teams investigating the Gold King Mine spill, helping to establish both pre-spill and pre-mining conditions.

Determining the natural conditions that existed in an environment prior to mining is important, Plumlee says, because it provides a baseline for the conditions that are technically feasible to achieve with remediation. This, in turn, can help planners set realistic goals for reclamation plans.

In establishing those conditions, it is important to remember that nature is not always pristine when left to its own devices. In Colorado, for example, the first European settlers gave streams names like Iron Creek, Alum Creek and Bitter Creek: names that alluded to natural acid rock drainage. In 1875, prior to intensive mining, the topographer of the Hayden Expedition noted the “iron-sulfate” waters of Cement Creek and Mineral Creek were not fit for drinking.

In 2011, the Colorado Geological Survey released a study identifying a number of streams whose headwaters, lying at elevations high above where mining impacts are felt, were acidic with high metals concentrations due to the hydrothermally altered metal-sulfide rocks in the surrounding geology. “Natural acid rock drainage has been active in Colorado for thousands, possibly millions of years,” the authors wrote.

In addition to understanding surface geology, knowing a site’s underground history is also crucial for remediation decision-making. Pairing historic documents with modern geoscientific technologies can help uncover that history.

Tools & Technologies

If the Gold King spill did nothing else, it raised awareness that a better understanding of a mine’s underground structure and hydrologic conduits and connections, both man-made and natural, is needed to make effective remediation decisions.

Gold King was part of a complex of mines including the large Sunnyside Mine. During the decommissioning of the Sunnyside Mine in the 1990s, 12 bulkheads — bunker-like structures made of steel and concrete — were installed to seal off the mine. Like plugging a bathtub drain, the bulkheading prevented acid mine drainage from flowing out at the lowest levels of the mine. After bulkheading, the local water table rose 300 meters, flooding the mine.

Although it might seem like flooding a mine would exacerbate the aquatic chemical reactions that result in acid mine drainage, sometimes water is part of the solution.“The idea behind the bulkheads is to raise the groundwater table back to pre-mining levels and remove oxygen from the acid mine drainage equation,” says Kirstin Brown, a geologist with the Colorado Division of Reclamation, Mining and Safety.

Soon after Sunnyside was bulkheaded and the water table rose, however, acid mine drainage at nearby mines — including the Red and Bonita, Mogul, and Gold King, each of which had previously been dry or discharging minimally — began flowing again. The renewed flows of acid mine drainage into Upper Cement Creek and the Animas River were at first actively treated to raise the pH. However, in 2003 and 2004, treatment ceased when disputes among the mine companies over who was responsible for its cost led to litigation, and streamwater quality again declined.

In 2010, in an effort to better understand the flow of mine drainage into Upper Cement Creek, the Bureau of Land Management, the Animas River Stakeholders Group and the Colorado Department of Public Health and Environment contacted the Colorado Division of Reclamation, Mining and Safety about creating a three-dimensional model of how the mine workings might be intersecting the water table.

The task fell to Brown, who worked with the U.S. Office of Surface Mining Reclamation and Enforcement, to learn and use EarthVision software to create the model, which drew on data from historic mine maps, some of which the researchers had to track down and “dig out of people’s basements in Silverton,” she says.

After scanning and georeferencing the old maps, groundwater data was then overlaid on the workings. Researchers can’t see the groundwater surface underground, but they can see where it flows out on the surface. If a mine portal, spring or stream is flowing at the ground surface, it shows researchers a fixed point on the surface of the groundwater table. Researchers also can check groundwater head pressures on some bulkhead gauges to see the current pressure and depth of the water table.

The result was a model that can be manipulated in three dimensions that gives officials the ability to “better visualize and understand the groundwater in the mountain and to help communicate the problem [of acid mine drainage] to the public,” Brown says. The model could also “help make predictions for the best practices for remediation.”

Understanding the hydrology at work in a mine can also allow for the most potent remediation technique: controlling the water at its source to prevent contamination in the first place. Sealing off mine entries with bulkheads can help prevent water from entering mine workings, and the flow of water inside the mountain can be manipulated to direct acid water away from clean water sources, Brown says.

Remediation teams employ other tools and technologies to investigate what’s going on belowground. Salt and dye tracer solutions can be introduced into mine waters to follow the hydrological connections among the workings. Drilling boreholes to send cameras, sensors or other instruments down into a mine is another common technique, often used to check the pressure and depth of a mine pool prior to beginning work.

“We do a lot of mine pool evaluations and mine pool monitoring, which is what didn’t happen at Gold King that resulted in uncontrolled releases of mine water,” Cavazza says. “Before we open up an abandoned underground mine, we almost always drill and put in monitoring wells so we have a good understanding of exactly how large [the mine pool] is, what the volume is, and how to contain and control it if we decide to open it.”

Another way to figure out what’s going on is to go underground with an engineering team, says Brown, adding that this is only done after ground conditions have been assessed, stabilized and deemed safe. Once underground, teams can map faults and fractures, collect information about water quality and water sources underground, and assess how to control those sources, for example, by determining where to place bulkheads.

But, it turns out, it is getting harder and harder these days to find engineers trained to work in mines.

Mining Engineers: A Depleted Resource

Since 1982, the number of accredited mining engineering schools has shrunk from 25 to 14 and for the last decade they have produced fewer than 200 graduates a year.

“Here in Pennsylvania, we have had a very difficult time recruiting new mining engineers to replace our mining engineers who are reaching retirement age,” Cavazza says. “There are fewer mining engineers being trained nationally, and there is probably going to be a continued need for them into the future.”

Last fall, in response to the Gold King spill, three bills were introduced in the U.S. House of Representatives Subcommittee on Energy and Mineral Resources chaired by Rep. Doug Lamborn (R-Colo.), who noted in his opening remarks the importance of having mining engineers on staff at agencies tasked with acid mine drainage cleanup.

“In the Committee’s investigation of the Gold King Mine spill, we discovered that, out of 15,326 employees, [the EPA] has no mining engineers and only 68 geologists, two of [whom] are assigned to [EPA] Region 8 where the spill occurred,” Lamborn said.

One bill, H.R. 3734, the Mining Schools Enhancement Act, would require the Office of Surface Mining Reclamation and Enforcement to direct 70 percent of its research funding to mining schools to help train the next generation of mining engineers.

In addition to mining engineers working on abandoned mine lands cleanup, it is “crucial to have economic and structural geologists who can help the mining engineers interpret and address the complexities of the geology, and hydrologists who can develop the detailed hydrologic models for groundwater flow,” Plumlee adds.

Legislative Will

The other two bills introduced last fall, H.R. 3843 and H.R. 3844, propose to assess a maintenance fee on mineral claims for the next seven years, establish a federal “Good Samaritan” law, and establish a foundation that would oversee private gifts and bequests to fund abandoned mine lands remediation projects.

The bills are not the sweeping legislation that has been called for to replace the current law governing hardrock mining — the General Mining Act of 1872. Signed into law by Ulysses S. Grant to promote the settling of the West, it was enacted a century before the environmental movement took hold and made no provision for funding or regulation of remediation. “It’s never been updated, which is a very long time for an environmental law to be on the books,” Cavazza says. But, he says, “some people don’t want it updated.”

The most recent legislation proposing to update the 1872 mining act, H.R. 963, the Hardrock Mining Reform and Reclamation Act of 2015, was referred to subcommittee, where it remains. It would have, among other things, assessed reclamation fees to establish a fund for future cleanups and established a federal Good Samaritan law to waive some liability for private citizens, groups or companies who want to become involved in mine cleanup projects. Opponents contend that while domestic coal producers can pass the additional cost of reclamation fees onto consumers, U.S. mineral producers competing in a global market would suffer a competitive disadvantage if additional fees were imposed.

“There’s really never been the legislative will in Congress to enact a hardrock abandoned mine lands program,” Cavazza says.

Thus, hardrock abandoned mine lands are instead overseen by an alphabet soup of local, state and federal agencies, each with its own rules and guidelines. And funding to remediate a particular site may come from a hodge-podge of sources, including federal, state, and private partners who, in turn, get funding from a variety of sources, including SMCRA, Superfund, and the Clean Water Act Grant Program.

“Currently, no single source of funding, whether it be federal, state, tribal or private, is adequate on its own to address the magnitude of the problem that exists,” the Bureau of Land Management (BLM) and the U.S. Forest Service (USFS) reported in 2007. As of 2011, according to a General Accounting Office report, BLM, USFS, the Environmental Protection Agency and the U.S. Office of Surface Mining Reclamation and Enforcement had spent at least $2.6 billion to reclaim abandoned hardrock mines on federal, state, tribal and private lands.

Good Samaritans

Some of the private funding comes from corporations or groups — like Trout Unlimited, a nonprofit organization dedicated to conserving trout fisheries — that have a vested interest in cleaning up their local waterways. However, under certain laws anyone involved with mine cleanup in any way over the years can potentially be held responsible for environmental damage, even that which preceded their involvement with cleanup, and be liable for legal damages and cleanup costs.

Thus, Good Samaritan laws offer permits to waive or reduce the liability of private parties that want to participate in environmental cleanup projects. For example, if a group helped remediate a polluted stream that was previously unable to support aquatic life to the point that fish could survive in it, but not necessarily to the point that the water met the standards of the Clean Water Act, Good Samaritan laws might exempt the company from the more stringent requirement.

South Dakota and Pennsylvania are currently the only states with “Good Sam” laws. In Pennsylvania, Cavazza says, the 1999 law increased the number of private parties participating in acid mine drainage cleanup projects. But, he says, he suspects that many potential corporate partners are still dissuaded by legal teams who do not want to risk federal liability.

“I don’t know why you would want to discourage anybody from going in to try to clean something up that they had nothing to do with creating, that they are not in any way liable for, and for which they are providing their own resources,” says Cavazza, who last fall testified in his capacity as past president of the National Association of Abandoned Mine Land Programs (not in his role as a state official) to the benefits of Good Sam laws before the House subcommittee.

The Legacy of Gold King

Whether the Gold King spill will provide the impetus to create a national program for hardrock abandoned mine lands remains to be seen. The case of Gold King is currently mired in litigation and hearings. At the site, the EPA has set up a temporary water treatment plant in the nearby ghost town of Gladstone to treat Gold King discharge before it reaches Cement Creek. Downstream, state and federal public health agencies and other researchers continue to monitor the Animas watershed, especially during spring runoff and high-water events that may mobilize sediments laden with heavy metals.

“Although there appear to be no short-term effects to health or the environment following the Gold King Mine spill,” the University of Arizona researchers wrote last November, “we will not understand the long-term impacts of this highly concentrated release of metals into our environment for quite some time.”

In April, in response to a request from Colorado Governor John Hickenlooper and towns, counties and tribes in the Animas and San Juan watersheds, the EPA proposed listing 48 historic mine sites in the Silverton Caldera as a Superfund site. Some residents of Silverton had long resisted the designation, despite the fact that it would bring additional federal resources for remediation, because it was thought that associating the town’s name with Superfund, often synonymous with hazardous waste, could threaten tourism. But after seeing the Animas run orange, many changed their minds.

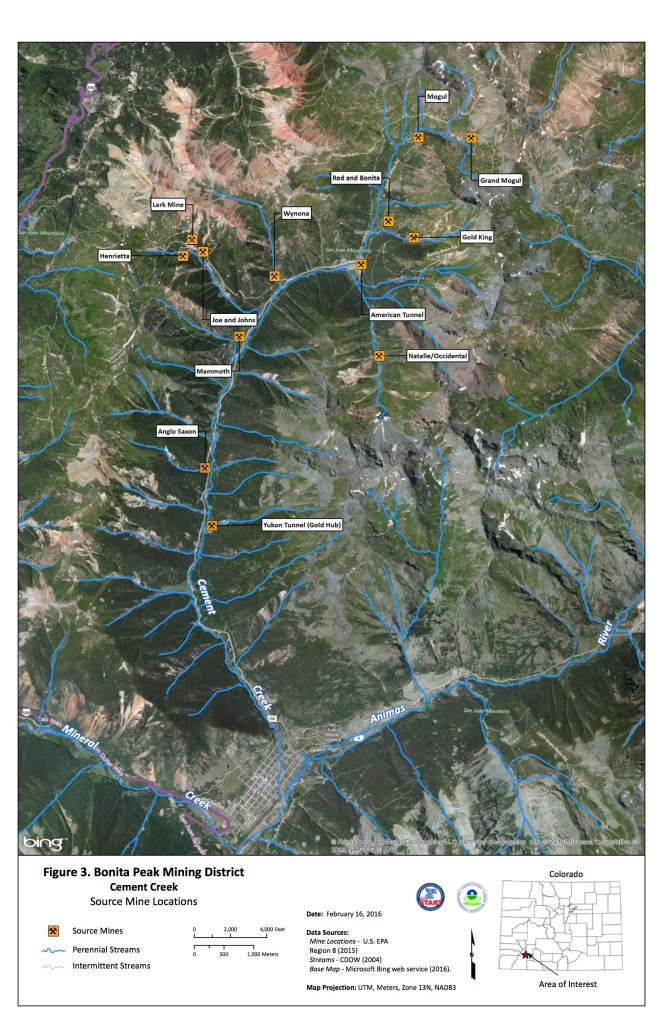

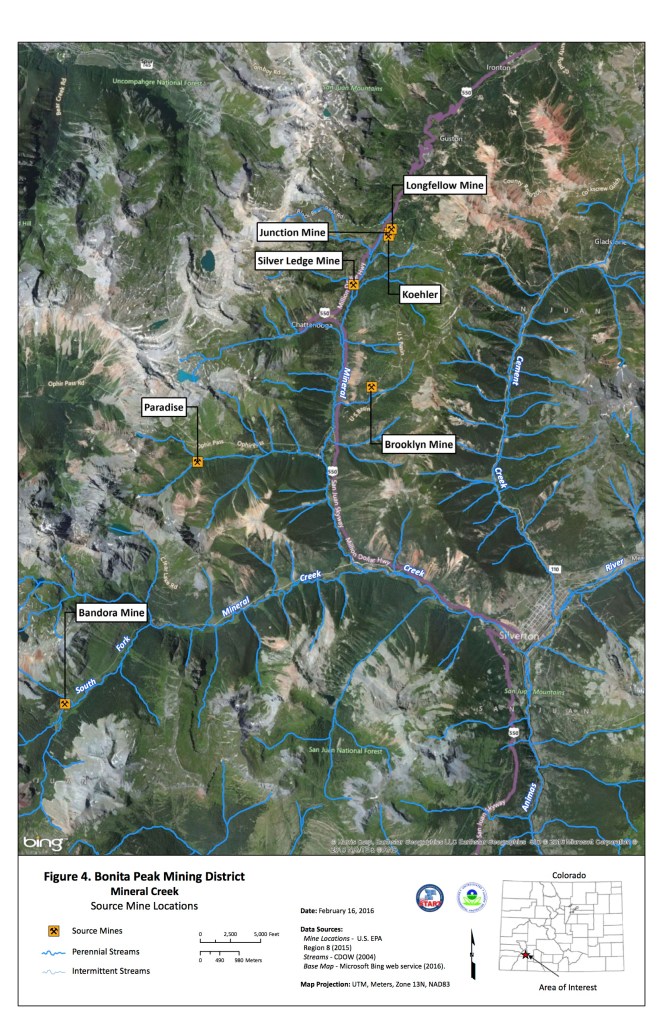

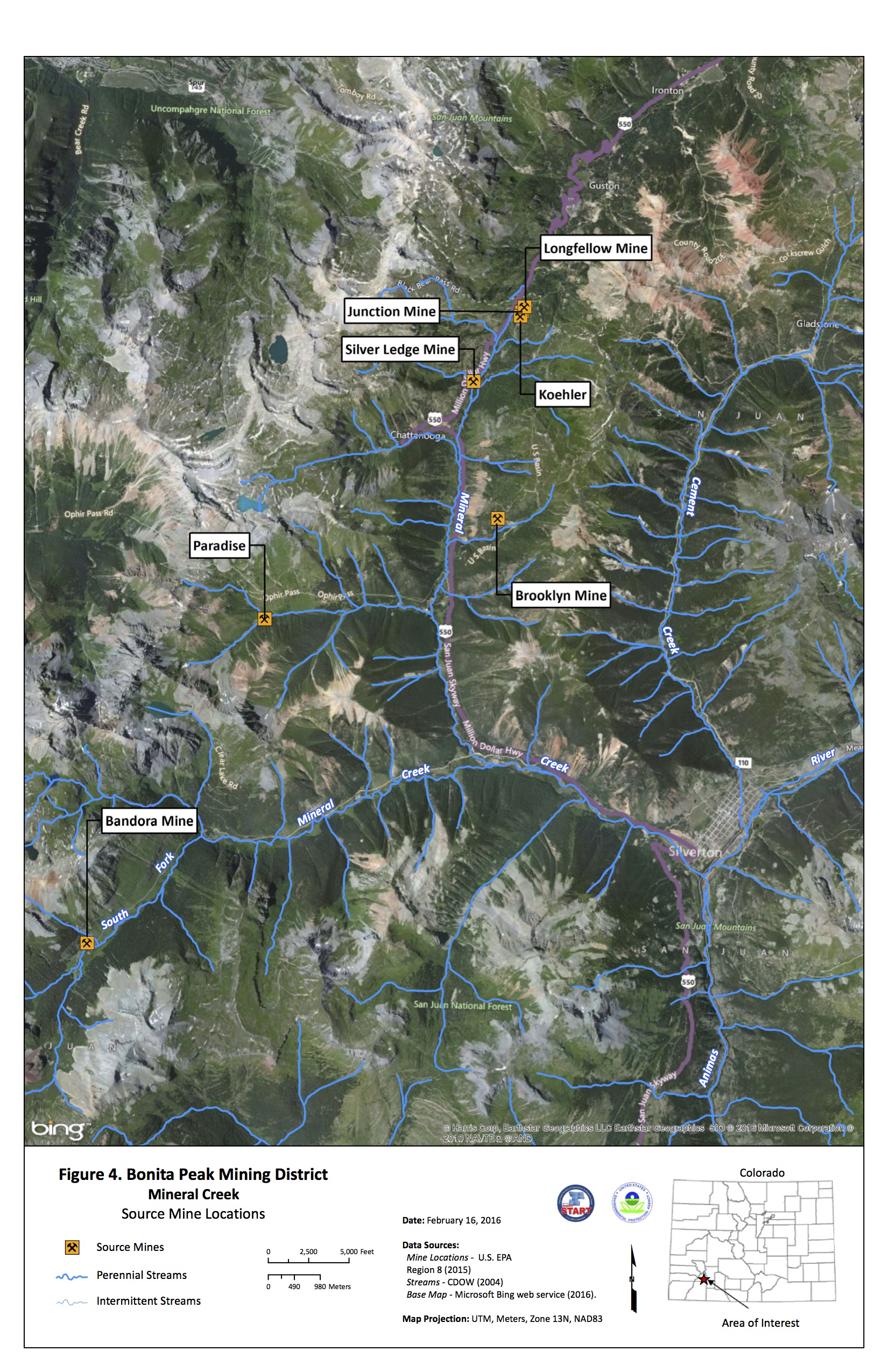

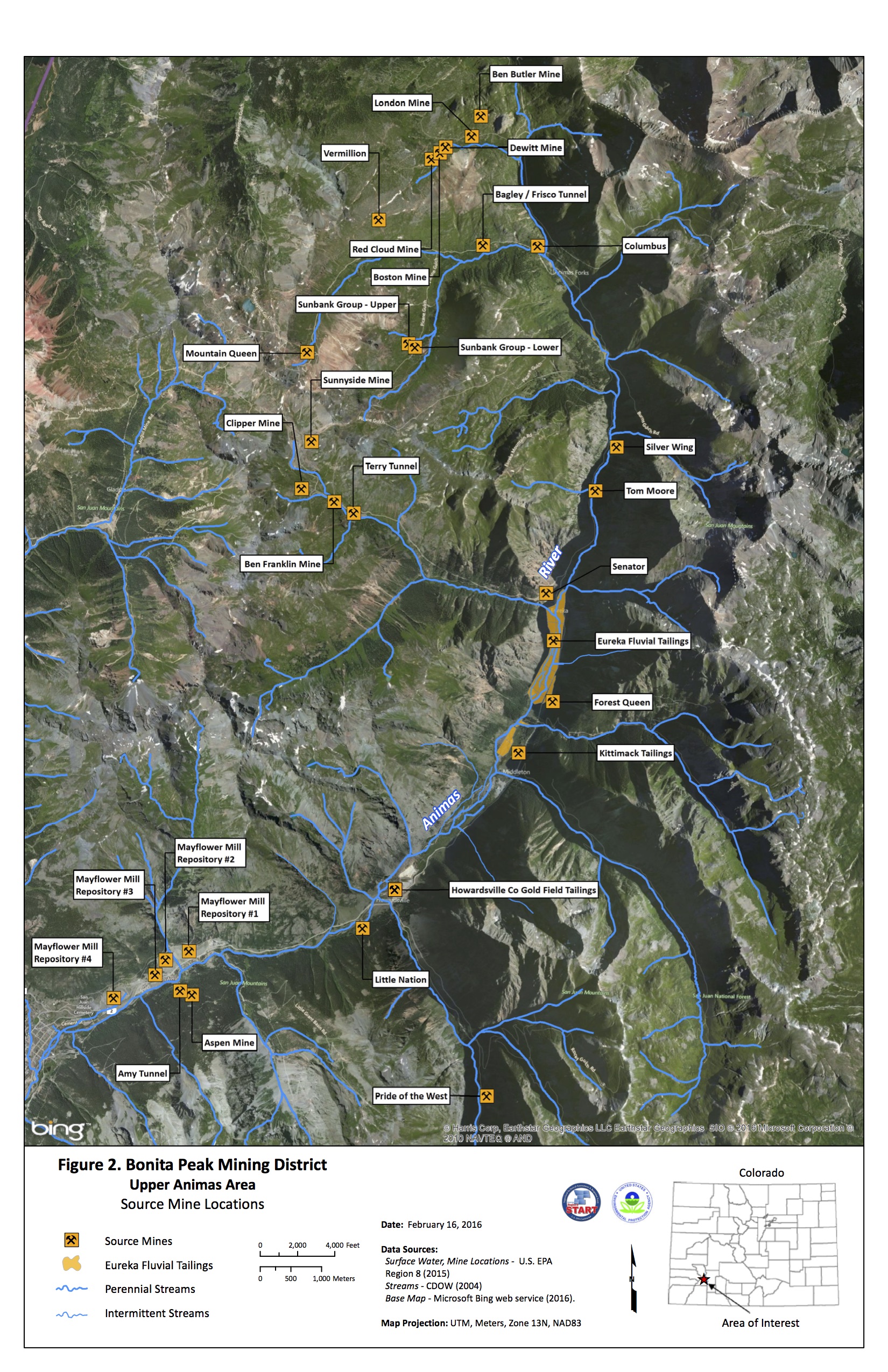

If approved, the Superfund site will be called the Bonita Peak Mining District.

From The Durango Herald (Jessica Pace):

Environmental Protection Agency officials said Wednesday they are deciding where to haul sludge from the temporary water-treatment plant for Gold King Mine wastewater.

The EPA periodically has updated the communities of San Juan and La Plata counties in recent months as a Superfund proposal moves forward, and most aspects of the agency’s work has been in the evaluation stages thus far.

On Wednesday, the EPA told La Plata County commissioners that the agency is considering whether to dispose of nontoxic sludge produced by the temporary treatment plant at a mining district site or a landfill.

La Plata County Commissioner Brad Blake said he opts for the least expensive option.

“It’s not toxic waste, so it can go anywhere,” he said.

Commissioners inquired about the life of the plant, which is supposed to end this fall.

“It was designed and constructed to be an interim measure,” Superfund project manager Rebecca Thomas said. “We’ll continue to evaluate options, but we’ll come up with a comprehensive remedy for the entire mining district.”

Thomas said for now, the temporary plant is operating as usual, and a long-term solution could include a permanent water-treatment facility.

The EPA also is evaluating what Superfund designation will mean for private property owners, officials said Wednesday.

From The Salt Lake Tribune (Emma Penrod):

State regulators are calling for more study of Lake Powell and sections of the San Juan River in light of unusual test results that may or may not be tied to last summer’s Gold King Mine spill.

Two sections of the San Juan River were added to the state’s list of “impaired” waters in the latest state water quality report. Those portions of the river were found to have concentrations of aluminum, cadmium, copper, iron, lead and mercury that exceeded state water quality standards on at least two occasions last fall.

The state also added portions of Lake Powell to the list — a move that greatly increased the overall percentage of freshwater lake acreage deemed as impaired, said Walt Baker, director of the Utah Division of Water Quality (DWQ). In the state report, released this week, 71 percent of Utah’s freshwater lakes did not meet the water quality standards for their designated uses, which include providing drinking water, recreation or wildlife habitat.

The overages in the San Juan River were detected by the Environmental Protection Agency while the feds were sampling the river to evaluate the fallout from the Gold King Mine blowout upriver, and are possibly related to the Aug. 5 incident, said Erica Gaddis, assistant director of the DWQ.

Gaddis said the department had feared this spring’s runoff could dislodge even more contamination and flush it downstream, but so far, the division hasn’t found evidence of that. And though portions of Lake Powell are listed as impaired, it’s unlikely that it’s related to the Gold King Mine, Gaddis said.

Water directly downstream of the mine saw decreased pH levels — becoming more acidic — immediately following the Gold King spill in August, but Lake Powell has had unusually high pH readings — a situation that itself is a mystery.

Now, the division’s scientists are also wondering where the estimated 880,000 pounds of heavy metals released during the August 2016 Gold King Mine incident ended up.

The common thought, Gaddis said, is that the metals were deposited in sediment somewhere upstream, on the Animas River in Colorado — and that they remained there, waiting for high river flows to flush them out.

It’s possible that those metals are already making their way downstream, she said, and increased river flow could be diluting the metals so that concentrations remain below the state’s screening values.

The potential for further contamination pushed the state to develop a long-term monitoring plan for the San Juan and Lake Powell, the likely final resting place for all that sediment, should it make its way farther down the river.

As part of that plan, the state has installed devices on the river capable of measuring the amount of sediment in the water in real-time. That data is available to the public at water data.usgs.gov.

It’s not yet clear how the amount of mobilized sediment correlates to the concentration of metals in the river. Gaddis said it could take another year for the DWQ to create a working model that will be used to issuing warnings when the river may be contaminated…

The primary concern, Gaddis said, is aquatic life. The state is also watching aquatic life in the region to determine whether metals in the river, or in the river’s sediment, are potentially harming fish or other creatures that live in the river. Gaddis said the DWQ has yet to see direct evidence of metals poisoning.

The long-term monitoring plan is anticipated to cost $1.2 million altogether, Gaddis said. So far the EPA has offered Utah $645,000 related to the Gold King Mine spill. Gaddis said the state intends to apply all of that money to its monitoring initiatives.

The state also intends to sue the EPA for its role in the Gold King Mine incident. Wade Fairway, an assistant Utah attorney general, told lawmakers during a Tuesday interim legislative meeting that his office was still in the process of hiring outside legal counsel to assist with the suit.

Meanwhile, Gaddis said, the DWQ has begun to turn its attention to the chronic effect of mining in the Bonita Peak Mining District in Colorado and on the San Juan River and its tributaries. The Gold King Mine alone, she said, could have released between 500 million and 850 million gallons of contaminated water over the past decade, and it’s just one of 48 old mines in the Bonita district.

The EPA proposed making the entire Bonita district a superfund site this past April.

From the Associated Press via The Fort Collins Coloradoan:

Time is up for people to comment on a proposed Superfund cleanup for leaking mines in southwestern Colorado, and not many have spoken up.

A few hours before the Monday deadline, 34 people had submitted comments

to the Environmental Protection Agency on the planned Bonita Peak Mining District Superfund site.

The site would include the Gold King Mine north of Silverton, which released 3 million gallons of acidic waste into Colorado, New Mexico and Utah rivers last August.

A finally tally on comments is expected later Tuesday.

The low number of comments came as a surprise after years of controversy over a Superfund site. Some worried it would hurt the region’s tourist economy or give the federal government too much power over local affairs.

From The High Country News (Jonathan Thompson):

“Corn are thirsty and dying, damn the EPA, damn the government, damn the industry!”

— Duane “Chili” Yazzie, Navajo farmer, activist and President of the Shiprock Chapter, from his poem “Yellow River”

On May 23, the State of New Mexico filed a lawsuit against the U.S. Environmental Protection Agency and the owners of the Sunnyside Mine near Silverton, Colorado, over damages caused by last year’s Gold King mine blowout. It’s likely just the first volley in what could be a long legal fracas emerging from both the spill and the impending Superfund listing for the Gold King and surrounding mines.

The action was hardly a surprise: New Mexico had expressed its intention to take legal action when the impacted rivers — the Animas and the San Juan — were still orange from the spill of 3 million gallons of acid mine drainage and iron oxide sludge. Initially, however, the state was targeting not just the EPA, but also the State of Colorado, the owner of the Gold King Mine and others. The only defendants in the actual complaint are: the EPA and its administrator Gina McCarthy; the contractor working on the mine when it blew out; and Sunnyside owner Kinross, a Canada-based global mining company, and its subsidiary Sunnyside Gold Corp.

While the EPA has accepted blame for inadvertently causing the spill, Sunnyside’s culpability in the matter is murky. After being almost dry for years, the Gold King mine started draining water in the late 1990s or early 2000s, most likely a result of water backing up behind one or more of the three bulkheads that Sunnyside installed in the American Tunnel, below the Gold King. Yet still unknown is which bulkhead, in particular, is causing the drainage, and whether Gold King water is just being returned to its historic course, or Sunnyside mine water is somehow infiltrating the Gold King. (See our extensive, interactive timeline, which clearly helped inform the New Mexico complaint, for details.)

The complaint alleges that the “garish yellow cloud of contamination wrought environmental and economic damage throughout the Animas and San Juan Rivers” and that it deposited sediment that could be re-mobilized during spring runoff, causing a potential repeat. Perhaps more damaging than the metals contained in the plume and sediment was the psychological impact, and the “uncertainty and anxiety generated by widely-circulated images of a sickly yellow river.” The state seeks reimbursement of all of its costs related to the spill, which it says exceed $100 million.

At a recent regional water quality conference in Farmington, New Mexico, one speaker noted that the “river would never be the same” after the spill. Yet water sampling and fish counts conducted since the spill have shown that things haven’t changed significantly. At the conference, a presentation by Jim White, aquatic biologist with Colorado Parks and Wildlife, noted that fish counts showed “no discernible changes in species composition, biomass, and/or quality of trout or native fishes POST Gold King Mine spill.” And an analysis conducted by the Mountain Studies Institute in Durango this spring showed that metal concentrations in the Animas River have increased during spring runoff, but not noticeably more than in past years.

From The Denver Post (Bruce Finley):

New Mexico launched a legal fight against the EPA and owners of a Colorado gold mine Monday, demanding action, contending the Gold King disaster caused catastrophic harm to downriver people, aquatic insects and fish.

“Not only is this an environmental crisis, but it is a crisis in poor governance. … Governments need to be accountable to neighboring communities as well as their own community,” New Mexico Attorney General Hector Balderas said after filing a lawsuit in federal court.

The lawsuit does not specify monetary damages, but state attorneys said New Mexico is entitled to at least $7 million to reimburse communities for emergency expenditures after the disaster and for independent, third-party monitoring of water quality. In addition, the attorneys estimated New Mexico suffered economic harm of $140 million.

It spares Colorado, for now. Balderas said he’s “having a conversation” with Colorado Attorney General Cynthia Coffman and hopes legal issues between the states can be resolved.

EPA officials declined to comment on the lawsuit, but agency officials said the EPA has paid $1.3 million to help New Mexico cover costs related to the disaster. Coffman declined to comment.

The lawsuit contends New Mexico, tribes and Utah suffered catastrophic damage from the EPA-triggered Aug. 5 spill into Animas River headwaters, a “sickly yellow plume of contamination” that flowed out of southwestern Colorado into New Mexico, the Navajo Nation, Utah and eventually Lake Powell atop the Grand Canyon.The spill damaged water that is the lifeblood of downriver communities’ economy and culture with devastating impact, the lawsuit said.

It demands tougher water-quality testing — using “the highest testing standards that the EPA would impose in any other state in the nation” — by someone outside the EPA.

Compensation would go for remediation and to help agricultural and cultural communities that depend on the river for irrigation and drinking water. “They must be properly compensated and there must be appropriate independent monitoring to prevent future dangers to public health and the economy,” the lawsuit said.

New Mexico blames the plugging of the Sunnyside Mine, currently owned by Kinross Corp., as the root cause of the Gold King disaster because this action backed up acidic, metals-laden water, causing water levels to spread to nearby mines, including the Gold King Mine. The lawsuit also targets Environmental Restoration, the EPA’s contractor, involved in work to try to drain the Gold King when workers accidentally caused a blowout.

From The Farmington Daily Times (Noel Lyn Smith):

New Mexico Attorney General Hector Balderas filed the complaint today on behalf of the New Mexico Environment Department in U.S. District Court in Albuquerque.

The EPA has admitted responsibility for the Aug. 5 mine blowout. Employees of an EPA contractor, Environmental Restoration, released millions of gallons of mine waste laced with heavy metals into the Animas and San Juan rivers during a cleanup operation. The plume carried more than 880,000 pounds of toxic metals including lead, cadmium, copper, mercury and zinc through state and tribal lands.

In addition to the EPA, the lawsuit names EPA Administrator Gina McCarthy, Environmental Restoration, Kinross Gold Corp., Kinross Gold USA Inc. and Sunnyside Gold Corp.

New Mexico is demanding the defendants “abate the imminent and substantial threats” from the Sunnyside Mine network and remediate residual contamination from mine releases. The state is also seeking compensation for environmental and economic damages.

The complaint alleges the state is experiencing “enormous economic losses” because of the spill.

“The indelible images of a mustard-hewed toxic plume meandering downstream – into the habitat of several endangered species and superb sport fishing and recreational grounds – will linger long after the visible impacts of the release have vanished,” the complaint states.

The “lingering stigma” will result in reduced economic activity and a decline in taxes, fees and income because of lost tourism, fishing and land use, according to the complaint.

State Environment Secretary Ryan Flynn said the federal Tort claim notice filed this month included an estimate the state has suffered and will suffer $130 million in lost income, taxes, fees and revenues.

In a telephone interview Monday, Flynn said the department tried to work with the EPA to address ongoing concerns — including monitoring heavy metals levels in the river — but were unable to resolve those matters.

“We tried over seven months to pursue a diplomatic path forward,” he said adding the agency has to be accountable for its promises to address the spill and its aftermath.

A press release from the attorney general’s office states New Mexico and the EPA have been unable to “mutually agree” on a monitoring plan that “appropriately protects” state and tribal lands.

“It is inappropriate for the EPA to impose weak testing standards in New Mexico and I am demanding the highest testing standards that the EPA would impose in any other state in the nation to protect the health and well-being of our citizens,” Balderas said in the release.

In a statement emailed to The Daily Times Monday, EPA Region 6 spokesman David Gray said the agency takes responsibility for the cleanup and has been working to reimburse response costs and provide funding for monitoring plans developed by state and tribal governments.

“EPA’s longstanding practice has been not to comment on pending litigation filed by external parties,” Gray said.

He added the EPA has paid approximately $1.3 million in reimbursements and monitoring costs for New Mexico. Other funding has been distributed to Colorado, Utah, the Southern Ute Indian Tribe, the Navajo Nation and the Ute Mountain Ute Tribe.

Louie Diaz, spokesman for Kinross, said in an email Monday that Kinross and Sunnyside Gold were not involved and have no responsibility regarding the mine spill.

The complaint names Kinross Gold Corp., through its subsidiary Kinross Gold USA, as owner of the Sunnyside Mine and neighboring properties near Silverton, Colo.

“Kinross and Sunnyside never owned or operated the Gold King Mine. We will vigorously defend ourselves from this legal action,” Diaz said.

The 51-page complaint asks the federal court to declare the defendants liable under the Comprehensive Environmental Response, Compensation and Liability Act for all costs incurred by New Mexico for its response to the releases or threatened releases of hazardous substances from the Gold King Mine and two additional locations, which are also mine sites in the mountains above Silverton.

The court is being asked to declare the named mining companies and EPA contractor in violation of the “imminent and substantial endangerment” provision in the Resource Conservation and Recovery Act.

The contractor, Environmental Restoration, did not return calls seeking comment today.

In addition, it requests EPA Administrator McCarthy to find a way to moderate pollution from inactive and abandoned mines in Colorado that discharge acid mine waste water into the Animas River.

New Mexico is asking the court to declare the mine owners and EPA contractor “negligent, grossly negligent or both” and award the state compensatory, consequential and punitive damages.

The complaint comes months after the state announced its intent to sue the EPA, the owners of the Gold King and Sunnyside mines, and the state of Colorado, which was not named in Monday’s complaint.

James Hallinan, spokesman for the attorney general’s office, said the state is still attempting to resolve issues with Colorado. Letters obtained by The Daily Times sent by Balderas to the EPA and the Colorado attorney general last week detailed some of the state’s problems with responses to the spill.

Navajo Nation President Russell Begaye said the tribe will support New Mexico in its action and the tribe will closely monitor the lawsuit.

The president added the economic and environmental impacts and losses related to the spill, including abandoned crops, “heavily affect” the tribe, and the EPA has yet to reimburse those Navajo farmers and ranchers.

“The U.S. EPA has yet to provide significant clean-up along the river banks and in the river beds. The Navajo Nation is still very concerned that the contaminants will continue to migrate down river, particularly when there is a spike in the flow of the river,” Begaye said.

From the Associated Press (Susan Montoya Bryan) via The Columbian:

The federal lawsuit says the environmental effects of the August 2015 spill are far worse than claimed by the U.S. Environmental Protection Agency. New Mexico wants to be paid back for its immediate response to the disaster and receive funding for long-term monitoring, lost revenue and a marketing campaign to undo the stigma left behind by the bright-yellow plume of arsenic, lead and other heavy metals that fouled rivers in three Western states.

“The liability is crystal clear. The facts speak for themselves, and EPA for whatever reason is unwilling to resolve this outside of court,” New Mexico Environment Secretary Ryan Flynn told The Associated Press. “We’re going to do what we need to do to make sure New Mexicans are protected and compensated for the harm caused.”

[…]

Balderas said the spill has had a devastating effect on communities and that the federal agency should be held to the same standards it would impose on private interests accused of polluting.

“Remediation and compensation dollars have been far too minimal for these very special agricultural and cultural communities who depend on this precious water source for irrigation and drinking water,” Balderas said. “They must be properly compensated and there must be appropriate independent monitoring to prevent future dangers to public health and the economy.”

The EPA typically declines to comment about pending litigation but a spokeswoman said last week that the agency was taking responsibility for the cleanup…

A notice sent this month to the EPA outlined the damage and argued that heavy metals in the Animas and San Juan rivers remain at levels that “present unacceptable risks to health and the environment.”

Attorneys for New Mexico argue that the spill was preventable and that the EPA had been warned about a potential blowout nearly a year before the incident.

The state also contends its offers to lead a regional long-term monitoring project to better understand the damage and the prospects of future contamination flowing down the river system have been repeatedly rebuffed by the EPA.

The agency offered $2 million to states and tribes affected by the spill for monitoring, but New Mexico officials say that’s only a fraction of the more than $6 million that would be needed for adequate monitoring in the state.

New Mexico also estimates the spill is costing the state $130 million in lost income taxes, fees and revenue. Officials have pointed to reduced tourism, fishing and land use throughout the region.

From Colorado Public Radio (Grace Hood):

The state sued the Environmental Protection Agency, contractor Environmental Restoration LLC, and owners of the Gold King Mine as defendants. It’s the first state to take this kind of legal action…

New Mexico officials say that about $130 million would go toward economic damages, $17 million would be spent on a marketing fund to promote the state’s image, and $6 million would be spent on long-term water quality monitoring. About $1 million would help recoup emergency response costs at the time of the spill.

New Mexico isn’t the only state struggling with covering costs associated with the spill. La Plata County, in Colorado, reports a deficit of nearly $185,849 spent on wages, benefits and water quality monitoring since the spill. San Juan County reports that it’s seeking reimbursement for $357,363 for spill-related expenses through Feb. 29, 2016.

From The Albuquerque Journal (Ollie Reed Jr.):

In a lawsuit filed Monday in federal court, Attorney General Hector Balderas and the New Mexico Environment Department cite economic setbacks and environmental damage suffered by the state after more than 3 million gallons of toxic waste was dumped into the river.

It demands reimbursement of $889,327 for short-term emergency-response costs paid by the state, more than $6 million to pay for long-term monitoring of the Animas and San Juan rivers and $130 million for lost income, taxes, fees and revenues suffered by the state because of the spill.

“The river only flows one way,” said Ryan Flynn, New Mexico environment secretary. “Trouble could still be coming for New Mexico. We have been pushing for a monitoring effort since October. Our concept is $6 million plus and five years of comprehensive monitoring that would give us a firm grasp of what is happening in the watershed. All EPA has said is we will give you is $465,000. That just doesn’t cut it.”

[…]

Flynn said efforts to resolve issues with the EPA outside of court have proved fruitless.

“I couldn’t tell you what EPA is thinking,” Flynn said. “EPA seems totally unwilling to resolve this in a collaborative manner.”

Among the major impasses between New Mexico and the EPA has been appropriate screening levels for contaminant metals such as lead.

Flynn said the EPA wants to impose a recreational standard that would be safe for hikers and campers, but New Mexico believes the much more strict residential standard should be applied because people live along the affected rivers in New Mexico.

“There are a lot of people whose homes are right on the river or who use the river for a lot more than kayaking,” Flynn said.

Balderas agrees.

“It is inappropriate for the EPA to impose weak testing standards in New Mexico, and I am demanding the highest testing standards that the EPA would impose in any other state in the nation to protect the health and well being of our citizens,” Balderas said. “Additionally, remediation and compensation dollars have been far too minimal for these very special agricultural and cultural communities who depend on this precious water source for irrigation and drinking water. They must be properly compensated, and there must be appropriate independent monitoring to prevent future dangers to public health and economy.”

The EPA does not comment on pending litigation filed by outside parties. But in a statement released Monday, the EPA said the agency takes responsibility for the mine spill cleanup and has been working to reimburse response costs and fund tribal and state monitoring plans as well as conduct its own monitoring of the Animas and San Juan rivers.

“EPA has funded about $1.3 million in reimbursements and monitoring cost for New Mexico to date,” the EPA statement said. “We continue to review documentation and applications for different entities in the state and will expedite payments. New Mexico has $7.1 million available in unallocated federal funds – of which $108,000 has already been approved – to fund real-time monitors in the river.”

[…]

Flynn said the EPA has paid back more than $700,000 of the emergency-response money New Mexico shelled out dealing with the spill, but that the state is seeking another $800,000-plus from the federal agency to cover those costs.

New Mexico also wants $130 million to pay for economic losses it attributes to the mine spill.

“We asked our analyst to be as conservative as possible,” Flynn said. “But there is stigma associated with this region due to the yellow river.”

He said that stigma had hurt New Mexico in revenue lost because kayakers, fishermen, hikers and other outdoorsmen have sought other places to enjoy outdoor recreation, tourists have selected other vacation destinations and consumers of agricultural products have looked elsewhere for their purchases.

“The facts speak for themselves,” Flynn said. “They (EPA) are clearly at fault. At the end of the day the law is on our side. EPA is now on the other side of the law it has been fighting to enforce for so many years.”

From The Durango Herald (Sue McMillin):

The lawsuit, filed in U.S. District Court in New Mexico, names the EPA and its administrator, Gina McCarthy, Environmental Restoration, LLC, Kinross Gold Corp., Kinross Gold U.S.A. Inc., and Sunnyside Gold Corp. as defendants. Kinross is the parent company of Sunnyside.

Along with seeking compensation for environmental and economic damages related to the Aug. 5, 2015, Gold King Mine spill, the lawsuit “demands that the Defendants abate the imminent and substantial threats emanating from the mines in Colorado, and remediate residual contamination from the Gold King Mine releases in New Mexico’s surface waters and sediments.”

James Hallinan, communications director for the New Mexico Office of the Attorney General, said he could not comment on open litigation, but the New Mexico Attorney General’s Office is in “ongoing communication” with the state of Colorado over the Gold King spill. The state of Colorado and the owner of the Gold King Mine were not named in the lawsuit filed Monday, although in March the New Mexico Environment Department filed notice of its intent to sue those parties as well.

Colorado Attorney General Office spokeswoman Erin Lamb declined to comment on the lawsuit.

A spokesman with Kinross Gold Corp. responded in an email to a request for comment: “Kinross Gold and Sunnyside Gold were not involved and have no responsibility regarding the incident on August 5th, 2015 and Kinross and Sunnyside never owned or operated the Gold King Mine. We will vigorously defend ourselves from this legal action.”

The lawsuit claims the “root cause” of the disaster dates back more than 20 years to Sunnyside Gold’s attempt to block acid mine drainage by building bulkheads in drainage tunnels below the mine. The owners of the Gold King and Sunnyside mines have disputed the source of the wastewater buildup.

“These bulkheads impounded possibly billions of gallons of acid mine drainage and wastewater in Bonita Peak Mountain and caused the water to flood several adjacent mines,” the complaint says. It accuses Sunnyside Gold of using the mountain to store its waste rather than properly treating it.

From The Durango Herald (Mary Shinn):

A federal grant will fund an economic development coordinator to help Silverton and San Juan County businesses during the potential Superfund cleanup of historic mines.

“They are totally reliant on tourism, and we don’t know how that will be impacted,” said Laura Lewis Marchino, the deputy director of the Region 9 Economic Development District.

The U.S. Economic Development Administration is providing about $115,600 to pay a coordinator for two years and cover expenses such as marketing materials and travel, Marchino said.

The coordinator will be focused on supporting existing businesses through the federal cleanup of the Bonita Peak Mining District, which could include 48 mine-related sites.

The mining district was recommended for a Superfund listing in April following the Aug. 5 mine blowout, and the proposed designation is nearing the end of a 60-day comment period.

Easing the housing shortage when Superfund workers come to town will likely be another priority for the coordinator, she said.

During the construction of the temporary water-treatment plant near the Gold King Mine, there was not enough housing, she said.

The town needs more rentals so that hotel and motel rooms aren’t used as permanent housing.

The five-member San Juan Development Association Board that includes representatives from the town of Silverton, San Juan County, the Silverton Chamber of Commerce and Region 9 will hire the new coordinator.

Region 9 will manage the two-year grant, and Marchino would like to have the position filled by late summer.

“We needed to do what we could to help,” she said.

From The Durango Herald (Jonathan Romeo):

On the second and final day of a mining conference in Farmington, a question borne out of mounting frustration was raised by a New Mexico representative: “Are we going to benefit from Colorado’s Superfund designation? And if not, do we have to apply?”

The inquiry, posed by Rich Dembowski, chairman of the New Mexico Gold King Mine Citizen’s Advisory Committee, stems from lingering resentment that as the Environmental Protection Agency and Colorado pursue the federal hazardous cleanup program, New Mexico, and its concerns, are being ignored.

Dennis McQuillan, chief scientist of New Mexico’s Environmental Department, said requests for an informational meeting about the Superfund listing in New Mexico have gone unanswered by the federal agency.

Yet when New Mexico officials see EPA hearings scheduled in Silverton, Durango and Ignacio, McQuillan said it feels like an outright slight toward downstream interests.

“It’s a reoccurring theme – we’re not treated like stakeholders down here because we’re not in Colorado,” he said. “We’re basically forgotten. But we are stakeholders. Our people use the water.”

For two days, researchers from New Mexico and Native American tribes pored over the science behind the spill, the highly mineralized Silverton mining district, and the possible short and long-term effects of sediment loading in the Animas and San Juan rivers.

McQuillan said the conference was a bit of an attempt to play catch-up to years of research well-known in Southwest Colorado through groups such as the Animas River Stakeholders Group. He hopes next year’s conference will have more data to compare.

“I think the Gold King spill brought a lot of attention to the existing situation down here,” he said.

“We have this shocking visual of yellow river, and yet the issue’s been around a long time.”

McQuillan said instead, the state environmental department has been more concerned over the high levels of E. coli found in the stretches of the Animas and San Juan rivers within New Mexico, which pose a more immediate risk to human health.

“The Gold King spill took a lot of the attention away from that issue that’s still out there,” he said. “That’s why we need a holistic approach to the entire watershed. Maybe this single event will cause that holistic response.”

The EPA listed 48 mining-related sites in its Superfund proposal, all around the Silverton area. However, New Mexico officials maintained Wednesday a real cleanup of the watershed should include other contaminating sites from Silverton to Lake Powell.

“The elephant in the room right now is we don’t trust the government, and that’s focused at the EPA,” Dembowski said. “Why aren’t they answering questions?”

New Mexico officials claim the EPA hasn’t justified important data, such as metal levels in the water returning to pre-spill conditions, and failed to answer simple questions about the temporary water-treatment plant, which led the state to file a Freedom of Information Act request.

San Juan County Commissioner Kim Carpenter, who referred to the post-Gold King spill world as “hell,” made it clear he too is no fan of the EPA.

“There’s a lot of resentment over the mine spill,” he said.

“In every state there’s a fight about water. And sometimes we overlook the fact we have to fight for what we have, not just what we want.”

However, Carpenter said New Mexico communities along the Animas and San Juan watershed are “at the mercy of where it all starts,” and for real cleanup efforts to begin, “the blaming has to stop.”

Virginia McLemore, with the New Mexico Bureau of Geology and Mineral Resources, begrudgingly agreed that although relationships between communities along the watershed might not historically be fair, they must work toward a shared goal.

“For years, Colorado gets the financial benefits, and we have to deal with the metal laden sludge,” she said. “But this is a problem that affects us all, and we have to trust the federal agencies will do their part.”

Location map for abandoned mine near Silverton. The Silver Wing is in the upper right corner of the aerial.

From The Durango Herald (Jonathan Romeo):

It was John Muir’s favorite bird.

“He is the mountain streams’ own darling, the humming-bird of blooming waters, loving rocky ripple-slopes and sheets of foam as a bee loves flowers, as a lark loves sunshine and meadows,” he wrote in 1894.

On and off for 30 years, Muir, regarded as America’s most influential naturalist, noted the American Dipper in his explorations of Yosemite, and saw the bird as intrinsically tied with the life of the rivers.

“They scarce suggest any other origin than the streams themselves; and one might almost be pardoned in fancying they come direct from the living waters, like flowers from the ground.”

And now, more than 120 years later, a community reeling from a mine spill that has reinvigorated questions over the Animas River basin’s health will monitor the bird to gain a better understanding of the local watershed.

“I think the spill served to highlight we live in a really contaminated watershed,” said Kimberly Johnson, a volunteer with the American Dipper Project. “So a group of us bird aficionados got together to look at the river from a wildlife point of view.”

[…]

While the spill caused no immediate die-off of fish and other aquatic life, the heavy-metal laden sediment deposited in the river has raised concerns about the long-term health of aquatic species.

University of Saskatchewan biologist Christy Morrissey said the American Dipper – a bird she researched to earn her doctorate – is the “perfect indicator of water quality.”

“Basically, just the presence of dippers will indicate the suitability of the habitat. Then you can measure a lot of things, contaminate-wise, which are useful for understanding the effects of something like a mine spill.”

The American Dipper, a sooty gray bird with a tail that points upward, lives its entire life on a river, rarely straying more than a few meters from the fast-moving, cold water.

Weighing about 2 ounces, North America’s only aquatic songbird can dive and spend up to 30 seconds under water, upturning rocks for aquatic insects, such as stoneflies, mayflies and caddisflies, midges and even small fish.

Yet for how stalwart the bird is – it’s been noted to withstand negative 40-degree air temperatures in Montana – the avian diver is extremely vulnerable to instability in a river’s ecosystem.

Pete Marra, head of the Smithsonian Migratory Bird Center, said if a dipper’s food source begins to decline, the bird has been known to decrease in numbers along rivers, and in some cases, completely abandon waterways.

In a reverse situation, after a dam in Washington was removed, Marra said a flailing population of dippers almost immediately rebounded as salmon were able to reach upstream and reproduce, thereby providing an essential food source for the bird.

“We used dippers to show how rapidly a river system can rebound,” Marra said. “But they can also be used as evidence of how contaminant releases affect ecosystems.”

A 10-month study on aquatic bugs, which are known to accumulate metals over time, will be released later this week, said Scott Roberts, an aquatic biologist with Mountain Studies Institute, which is part of a multi-year monitoring program on the Animas.

And while the institute and others look below the surface, a group of self-organized volunteers operating under the name The American Dipper Project will keep a lookout above this summer.

The project extends along the Animas from behind Home Depot all the way to Silverton. Volunteers are assigned a stretch of the river and asked to visit three times throughout the summer, for a minimum of 20 minutes.

“Not long enough to disturb but long enough to observe what they’re doing,” said Kristi Dranginis, an organizer and owner of Bird Mentor.

Dranginis said the project’s first-year goal is to identify where nests of the American Dipper are located along the Animas. And then in following years, since the bird is non-migratory, behavior such as reproduction can be further analyzed.

“There was a feeling after the spill of what can we do?” said Shelley Silbert, executive director of the Great Old Broads for Wilderness, which is supporting the effort. “This project offers people who are not scientists, or even really skilled bird watchers, to get involved and contribute.”

With no historical data on the bird, Dranginis hopes to correlate the dipper’s habitat with state and federal findings on metal levels. If a particular dipper’s behavior takes a downturn, the group would ultimately like to test the bird – either through blood or its feathers – for any abnormalities or bio-accumulations.

But that’ll be difficult, Morrissey said. Field studies are almost never sufficient to pinpoint the effect of contaminates on a species, she said, and other environmental factors further entangle research.

“That said, it’s additional evidence that’s supposed to get regulators info that can give some clues,” Morrissey said. “And if the pattern holds, even with variations, then you have a greater support for your hypothesis that it’s whatever the disturbance is that’s caused the problem.”

From The Durango Herald (Jonathan Romeo):

Halfway through a public comment period, a mere five short responses have been posted regarding the proposed Superfund designation for the mining district north of Silverton…

In the wake of the blowout, impromptu emergency meetings lighted up with bombardments toward federal agents and impassioned calls for a swift and immediate cleanup of the river.

Social media transformed into a stomping ground for the concerned, the opinionated and the distrustful – an Aug. 6, 2015, Durango Herald report generated 404 comments. And months later, several Facebook groups cropped up, dedicated to the spill.

As alarmed anger transformed into serious conversations on how to address the long-standing problem of metal loading in the Animas watershed, an even more controversial prospect entered: a Superfund designation that had been opposed for nearly two decades by Silverton and San Juan County.

Yet pressure from downstream communities swelled. After much negotiation and discussion with the EPA, Superfund listing was sought by area and state officials. Labeled the Bonita Peak Mining District that includes 48 mining-related sites, a 60-day public comment period began on April 6.

But now, it seems the flood of convictions has subsided to a trickle of concerns.

The few responses include the plain and simple: “Add the Bonita Peak Mining District in San Juan County, CO to the NPL.”

The wary: “Yes it’s scary that this could or already has happened again, but as a tourious (sic), that loves to go ATVING with my family to see all the history of the area, I’m afraid that by cleaning up all these sites, the tourisium (sic) with (sic) domenish (sic) and the towns of Silverton, Oray (sic), and many others will suffer.”

[…]

And another disagreed with inclusion of the Little Nation mine, located in the Upper Animas, on the listing.

“The Little Nation mine has no water discharge,” wrote Brad Clark, pinning a nearby drainage tunnel as the culprit discharging mine wastewater into a wetland…

First, the pre-problem stage, in which an existing issue alarms experts, but hasn’t captured much public attention. Then comes alarmed discovery: an event that thrusts the problem into the spotlight, and jars people to awareness, who in turn call for a quick fix.

In the final three stages general interest wanes. The public realizes there are no silver bullets; solutions are complicated and time intensive. Some feel discouraged, overwhelmed or bored and the issue recedes to the backgrounds of people’s minds.

And by that time, a new problem has taken its place.

Brian Burke, a psychology professor at Fort Lewis College, agreed. He said the sight of orange water activated public interest. But now, it’s out of sight, out of mind.

“The problem is much more complicated than the EPA making a mistake and leaking some disgusting poison into our river,” he said. “The problem requires critical thinking, and most people won’t take the time to do that.

“Now that it’s not orange anymore, it’s harder to notice, although pollutants are being dumped daily.”

Location map for abandoned mine near Silverton. The Silver Wing is in the upper right corner of the aerial.

Location map for abandoned mine near Silverton. The Silver Wing is in the upper right corner of the aerial.

From The Durango Herald (Jessica Pace):

Environmental Protection Agency officials say by next month they intend to provide La Plata and San Juan counties a list of tasks it expects to complete in 2016 at the proposed Bonita Peak Mining District Superfund site.

“Next month, we could provide a more comprehensive briefing on 2016 activities, where we will collect data and figure out what questions that data will answer,” Superfund project manager Rebecca Thomas said in a brief meeting with Durango city councilors and La Plata County commissioners Thursday afternoon.

The rest of the year includes plans for a hydrology study to evaluate risks to human health and water quality as well as an evaluation of historic and cultural resources in the area.

Thomas said the sampling will answer the question of which mining sites, if any, can be quickly remedied and removed from the National Priorities List, such as those contributing to Mineral Creek, which is less complex than the areas surrounding the Upper Animas River and Cement Creek.

Thursday’s meeting was largely a repeat of information from the EPA, though local officials had questions and comments about the process.

“There are a lot of people in Durango concerned it could happen again,” City Councilor Sweetie Marbury said, referring to the EPA-triggered Gold King Mine spill on Aug. 5 that ejected 3 million gallons of metal-laden water into regional watersheds.

“How will you identify the risk areas to prevent another spill happening?”

Thomas said one of the leading priorities for the Superfund team will be to examine draining adits to assess their structural stability.

Thomas said the EPA is deciding whether to expand the Gold King Mine treatment facility to treat other nearby drainage sources.

The Bonita Peak Mining District near Silverton contains 48 mine-related sites and was recommended for placement on the Federal Register for Superfund designation on April 7. The EPA now seeks comments from the public, which can be submitted online at the EPA Superfund Program Bonita Peak Mining District page.

The Superfund managerial team will return for updates the week of May 23.

Meanwhile, Animas River pollution has many sources. Here’s a report from Jonathan Romeo writing for The Durango Herald

With much of the recent focus on the Cement Creek drainage, the major sources for metal loading into the reaches of the Upper Animas River remain a bit of a mystery for researchers.

Yet Sunnyside Gold Corp.’s four massive tailings ponds along the Upper Animas River – about a mile northeast of Silverton, above the confluence with Cement Creek – have long been under suspicion.

“From Arrastra Gulch down to Silverton, there is a substantial amount of metal loading, and it’s not clear where that is coming from,” said Peter Butler, a coordinator with the Animas River Stakeholder’s Group. “The sources are not as identifiable as Cement Creek.”

From the late 19th century to the early 20th century, miners routinely dumped any by-product from metal extraction directly into rivers or lakes throughout the highly productive Silverton caldera.

In the 1930s, Sunnyside began hauling ore from Gladstone through Silverton and up what is now County Road 2 to the Mayflower Mill for processing. Only 5 percent of the ore contained precious metals.

The leftover 95 percent of waste rock, which usually contained heavy metals that included cadmium, copper and lead, was dumped beside the mill until 1992. The four piles now stretch about a mile and a half.

Sunnyside over the years has conducted numerous projects to reduce the leeching of metals into the Upper Animas, including covering the piles with clay to reduce the entry of water and digging diversions to prevent groundwater from seeping into the ponds.

Still, high concentrations of metals continue to load, according to data collected by the stakeholder’s group. Butler said in March and April, more concentrations of metals can enter the river along that stretch than all the loading that discharges from Cement Creek, considered the worst polluter in the mining district.

On Tuesday, Silverton native Larry Perino, a spokesman for Sunnyside, revealed the results of sampling conducted last year during high-flow and low-flow points to the stakeholder’s group.

Water samples taken within the tailings pond showed levels of cadmium, copper and six other metals that exceeded Colorado Department of Public Health and Environment standards. Within the Animas River along that stretch, cadmium and copper were the only metals in excess.

However, the results leave many gaps for researchers characterizing the watershed. Testing occurred only a few days in May and September, and neglected the historically high period of metal concentrations that occur in March and April.

When questioned, Perino doubted the veracity of the historical data and cited the company’s tight time frame for testing. He later added those months would have been difficult to take samples given the inclement weather.

“I think it’s impossible (to draw conclusions) unless you’re out there weekly,” said Perino, adding the company has no further plans to test this summer.

Regardless, the next steps for remediating the tailings ponds are unknown. The site, owned mostly by Sunnyside, a subsidiary of mining conglomerate Kinross, is included on the Environmental Protection Agency’s proposed Superfund listing, raising uncertainty over jurisdiction and responsibility. Sunnyside, one of the region’s largest and longest running mining operations, could be targeted as a potentially responsible party, despite years of undergoing voluntary cleanup projects aimed at being cleared of further liability.

“Right now, there are no formal agreements between EPA and Sunnyside,” said Rebecca Thomas, the EPA’s manager for the Superfund site. “So if they chose to collect data, that’s certainly their prerogative. We’ve had a cooperative relationship historically, and I think that will stay.”

Doug Jamison with the state health department said it’s too early to draw conclusions on just how much Sunnyside’s tailings contribute to the overall metal loading in the Animas watershed.

“I think there’s a lot of evaluation that needs to be done,” he said. “On the other side of the valley, there are also some potential sources.”

Indeed, of the 48 mine-related waste sites included in the Superfund listing, nearly 30 are along the stretches of the Upper Animas.

Perino said testing was done at Howardsville, above the tailings, to compare how water quality changed during its flow downstream, but he did not have that information available.

In the coming summer months, the tailings – designated a National Historic Landmark in 2000 – will be the subject of further scrutiny.

“In general, I think people were hoping (Tuesday) for a more definitive answer,” Butler said. “But I think what we learned is that it’s a difficult thing to figure out.”

Here’s the release from the Mountain Studies Institute:

The fact that people in the community noticed when the Animas River was distinctly yellow-brown in color on February 15, 2016 reflects a heightened awareness of changes in water quality since the Gold King Mine release. Warm temperatures in mid-February initiated the first increase in runoff since last fall’s storms, picking up sediment in the process.

Mountain Studies Institute (MSI), a nonpartisan independent research station, has been monitoring water quality of the Animas River since before, during, and after the Gold King Mine release. MSI received lab results back from water quality samples collected from the Animas River at Rotary Park on February 15, and March 1, 2016.

“These samples are the first in a series of sampling that will occur as part of a monitoring program that aims to understand changes in water quality during 2016 storm events and spring runoff” said Scott Roberts, MSI’s aquatic ecologist. The monitoring program is part of a partnership between MSI and the City of Durango to convey Animas River water quality information to the public.

“Because we know that people are curious to see the data, MSI has posted water quality monitoring results and an explanation of those results on our website, http://www.MountainStudies.org” said Marcie Bidwell, MSI’s director. “By posting updated information on our website, we hope to keep the public informed as the season progresses. Links will also be available on the City’s website, http://www.durangogov.org.”

Results from the spring samples indicate some encouraging news. Metals of concern for human health (Arsenic, Lead, and Mercury) and those thought to be most harmful to aquatic life (Copper, Zinc, and Selenium) were found to be at levels considered safe by Colorado Department of Health and the Environment (CDPHE) water quality standards. All metals analyzed from these two spring samples were at levels considered safe for agriculture and domestic water supply use (based on CDPHE water quality standards). Additionally, all metals were below Environmental Protection Agency’s recreational screening levels, which represents the level at which no adverse health effects are expected to occur in humans consuming 2 liters of filtered water per day, from the Animas, orally, for 64 days each year for a total of 30 years.

However, the yellow-brown color of the Animas River at Rotary Park in Durango on February 15th did contain high levels of certain metals. Concentrations of Aluminum and Iron surpassed chronic water quality standards set by CDPHE to protect aquatic life from persistent, long-term exposure to metals. The brief exceedances of chronic water quality standards from one sample on one day do not necessarily indicate potential harm to aquatic life unless these levels persist continuously over a 30-day period.
The visible yellow or orange color of the river is mostly Iron and Aluminum. Iron particles of various sizes are suspended in the water column. Other metals, such as Zinc, readily bond to the Iron particles.

“MSI’s data supports the conclusions of local, state and federal partners that, from a public health standpoint, this year’s spring runoff is unlikely to be different from previous years. Monitoring and notification procedures are also in place to notify the public if conditions change.” said Liane Jollon, executive director of San Juan Basin Health (SJBH). “SJBH advises the public that it is always good practice to wash with soap and water after exposure to any untreated body of water, including the Animas River. Further information and more health tips for river users are available on our website at http://sjbhd.org/public-health-news/animas-river-health-updates/.”

In a partnership with the City of Durango, MSI plans to continue to monitor the water quality of the Animas River throughout 2016, focusing on understanding chronic exposure to aquatic life before runoff, during runoff, and into the summer season.

Please keep in mind that these observations are from only one location (Rotary Park in Durango) on the Animas River and may not be indicative of the entire Animas River watershed.

Visit http://www.MountainStudies.org to learn more about MSI’s monitoring efforts and results.

From the Associated Press (Dan Elliott):

Runoff from autumn storms kicked up the levels of some contaminants in a southwestern Colorado river after a massive spill of toxic mine waste, but concentrations of other pollutants declined or didn’t change, researchers said Friday.

A report released by the Environmental Protection Agency could offer clues about what will happen to the Animas River this spring and summer when melting snow from the San Juan Mountains makes the waterway run higher, potentially stirring up pollutants that had settled to the bottom after the spill.

But the researchers said they couldn’t be sure that the pollutants they measured came from the Gold King Mine — source of the 3-million-gallon spill last August — or if they were from other mines that riddle the area. They also said they didn’t have enough historical data to know whether storms that hit after the Gold King spill stirred up more pollutants than ones before it…

Most of the metals settled to the bottom of the Animas before reaching the San Juan River in New Mexico, the EPA said. Experts have differed on whether and how much those metals will be stirred up when river flows increase after storms and from the spring snowmelt.

The nonprofit Mountain Studies Institute in Silverton monitored the river for the EPA in Durango, Colorado, about 60 miles downstream from the mine, and compiled a report.

Seven storms increased the flow of the Animas in Durango between Aug. 9 and Oct. 26. Concentrations of six contaminants increased after some of those storms, including aluminum and copper, the institute’s report said.

Levels of mercury and five other contaminants decreased after some storms, while the levels of seven others didn’t change.

State water officials don’t expect floods or above-normal flows in the Animas this spring and summer. The San Juan Mountain snowpack that melts into the river was only 66 percent of the long-term average on Friday.

Even if a weekend storm drops up to 2 feet of snow on the San Juans as predicted, it probably won’t be enough to cause the Animas to flood, said Kevin Houck, chief of watershed and flood protection for the Colorado Water Conservation Board.

From the Associated Press via the The Colorado Springs Gazette:

Republican Rep. Scott Tipton said Thursday a Superfund cleanup would be overseen by the U.S. Environmental Protection Agency, which caused an August mine spill that prompted the cleanup.

Tipton says it would be better to fund the effort another way. He didn’t offer specifics.

The EPA on Wednesday proposed adding the Gold King Mine and other sites to the Superfund list. Officials in Silverton and San Juan County and Gov. John Hickenlooper have endorsed it.

From The Denver Post (Bruce Finley):

A cluster of 48 mining sites near Silverton, including the Gold King Mine, is expected eventually to find a spot on the National Priorities List of the nation’s worst disasters threatening public health and the environment.

But the EPA’s process requires this first step, followed by a period for comments. There’s no guarantee listed sites would receive funding for cleanup.

“I’m excited. This shows our work negotiating with the EPA is paying off,” Silverton town administrator Bill Gardner said. “It shows they are true to their word that there’s going to be a commitment from them, and that we are going to move forward quicker rather than slower.”

[…]

“The agency will follow the same process at the Bonita Peak Mining District as for all other proposed NPL sites,” spokeswoman Christie St. Clair said.

The priorities list serves as a basis for enforcement actions against potentially responsible polluters and for securing cleanup funds. For 35 years, the Superfund program has run on the principle that polluters should pay for cleanups, defraying costs to taxpayers. EPA officials hunt for parties legally responsible for contaminating a site and try to compel them to cover cleanup costs.

“The process is moving forward,” said Peter Butler, coordinator of the Animas River Stakeholders Group, which since 1994 has worked to stop contamination from hundreds of leaking inactive mines.

“Hopefully, actual metal reductions to the river happen sooner rather than later,” Butler said…

Gov. John Hickenlooper in February backed up southwestern Colorado residents in requesting EPA action to address the Gold King and other inactive mines contaminating headwaters of the Animas River — water that flows into New Mexico, tribal nations, Utah and eventually the Grand Canyon toward California.

“We are pleased the EPA proposed adding the Bonita Peak Mining District to the National Priorities List (NPL). This is a crucial next step in making the region eligible for necessary resources and comprehensive cleanup efforts under EPA’s Superfund program, but our work is not done,” Hickenlooper said Wednesday morning.

“We are working with the EPA to ensure that adequate funding for this site is provided, including immediate interim measures and options to mitigate any further water quality deterioration. We are also working to ensure state and local officials continue to have an active role and that there is robust and significant community involvement,” he said.

“Lastly, we continue to support efforts by our congressional delegation to reach consensus around ‘Good Samaritan’ legislation, which is one of the most significant tools at our disposal to allow for voluntary cleanups of draining and abandoned mines.”

From The Durango Herald (Peter Marcus):

Colorado Attorney General Cynthia Coffman is preparing defensive and offensive strategies to legal disputes in the wake of the Gold King Mine spill…

Some observers wonder why Coffman hasn’t sued the EPA, which admits that excavation during restoration work led to the blowout. Also, there are accounts that the agency knew a blowout was possible.

Coffman says she is not shy about suing federal agencies, having joined the state in three lawsuits, including most recently over implementation of EPA carbon standards, known as the Clean Power Plan.

“What we have here is a totally different animal because we have an environmental incident, whether accidental or intentional, whatever you want to call it, that requires a totally different approach,” Coffman said…

“Am I prepared to apportion who has what liability? I’m not. I don’t feel like we know enough,” Coffman said.

If lawsuits are filed, they’re likely to drag on for years, if not decades, Coffman said, pointing to the complicated nature of environmental cases, the long list of parties involved and leaking mines in the area.

Hanging over the process is a potential Superfund listing, which would inject large amounts of cash into permanent restoration efforts at as many as 50 mining-related sites in the Gladstone area that have contaminated the Upper Animas River, Mineral Creek and Cement Creek for more than a century.

A Superfund listing itself could result in a lawsuit from environmental groups, who may fear that restoration efforts don’t go far enough.

Coffman said Superfund lawsuits are tricky, and there is a lack of institutional knowledge because Superfund listings are relatively rare. The attorney general’s office downsized its Superfund unit several years ago.

“You have a new generation of attorneys in this office who may not have seen a Superfund case,” she said.

Coffman said after receiving the two Notice of Intent to sue letters from New Mexico and Utah, her office assembled a 10-person Gold King Mine team, including environmental attorneys and governmental immunity and civil litigation experts.

The attorney general’s office also has held weekly conversations with the governor’s office. Coffman said Gold King Mine is “near the top of the list.”

“Litigation, it’s an important tool that attorneys have, but negotiation is equally important,” Coffman said. “Once you start litigation, the tone automatically changes, and sometimes irrevocably.”

Democratic Gov. John Hickenlooper is optimistic that he can reach resolution with the two states out of court. But he said: “If they sue us, I think that unifying effort will be diminished.”

Hickenlooper said he spoke with New Mexico Gov. Susana Martinez recently. New Mexico is concerned with water-testing plans, which the governor believes the two states can resolve.

“The EPA … admitted responsibility, they said they would hold themselves to the same high standards they would any private-sector business and they were going to make good on what damages there were. Let’s wait and see before we pick up the telephone and call in the lawyers. Let’s see how well they live up to that commitment,” he said…

Coffman may have to intervene if the EPA does not follow through, or if the agency’s efforts seem inadequate. She sent the agency a letter on March 15 urging it to settle at least 51 unpaid claims from individuals, which total nearly $5 million. Coffman said she has not yet received a response from the agency.

“It’s easy to admit fault,” Coffman said. “It’s much harder to take responsibility and pay for the consequences of your actions.”

From The Denver Post (Bruce Finley):

New Mexico officials Tuesday accused Colorado of blindly accepting assurances from the Environmental Protection Agency that the Animas River has returned to conditions that existed before the Gold King Mine disaster — and warned they’re still mulling a legal battle.

New Mexico’s chief environmental official also is pressing the EPA to reimburse $1.5 million spent responding to the agency-triggered Aug. 5 blowout, which spilled 880,000 pounds of acidic heavy metals downriver.

“Colorado and the EPA keep saying everything has returned to pre-event levels. That’s just false, not backed up by the data,” said New Mexico’s Ryan Flynn, a Cabinet secretary who runs the state Environment Department.

“There’s still a hazard. The risk is still there. We’re having to deal with that risk. We shouldn’t be having to address, on our own, a risk that was created by others,” Flynn said.

Colorado officials didn’t respond.

EPA spokeswoman Nancy Grantham said the agency has been working with New Mexico “and will review their submission as quickly as possible.” New Mexico sought reimbursement for about $375,000 about a week ago then revised that to include additional response costs, Grantham said…

New Mexico residents in Farmington, Aztec and other communities have raised concerns about lead and other heavy metals deposited along river banks. They contend that heavy rain and flooding dislodge contaminants, causing spikes in lead levels. They acknowledge that municipal treatment plants remove contaminants and that lead may have existed in soil before the disaster — but they demand further study…

And New Mexico also is pleased that Silverton residents and Gov. John Hickenlooper have asked the EPA to launch a Superfund cleanup, he said. “But the jury is still out on whether we’re going to move forward to court.”

From The Durango Herald (Peter Marcus):

A $1.5 million bill sent by New Mexico to the Environmental Protection Agency on Friday could be the last chance for federal officials and the state of Colorado to avoid a lawsuit related to the Gold King Mine spill.

Meanwhile, Colorado Attorney General Cynthia Coffman on Tuesday asked the EPA to quickly resolve individuals’ claims, which have not been settled more than seven months after the incident.

The requests from New Mexico and Colorado highlight the uncertainty that lingers in the aftermath of the spill.

New Mexico Environment Department Secretary Ryan Flynn told The Durango Herald on Tuesday that his researchers reject assertions from Colorado Gov. John Hickenlooper and Colorado environment officials that the Animas River quickly returned to safe pre-event conditions after the Aug. 5 spill of toxic heavy metals.

The rift between New Mexico and Colorado is a departure from the unity promised when Coffman hosted the attorneys general of New Mexico and Utah in Rotary Park in Durango just a week after the spill…

New Mexico also asked the EPA to provide financial and technical support for a long-term monitoring plan it developed in partnership with Utah. And the state wants a seat at the table for ongoing Superfund discussions.

“If we can’t come to alignment on those issues, then ultimately the state of New Mexico will have to do what is necessary to make sure our communities are protected,” Flynn said.

Coffman said her office has been in communication with New Mexico.

“I think these interstate matters are best resolved by talking to one another rather than lashing out in the press …” she said in an email to The Durango Herald. “We are committed to working with all the parties affected by this catastrophe to reach a good outcome as quickly as possible.”

Coffman’s letter to EPA Administrator Gina McCarthy expressed concern for EPA’s “apparent failure to process claims of citizens” affected by the spill.

Fifty-one claims from individuals totaling nearly $5 million have not been paid, despite the EPA promising to “make every effort” to respond quickly.

“EPA’s inaction effectively forces Colorado citizens into federal court to resolve their claims or they must suffer further delay and uncertainty …” Coffman wrote to McCarthy. “Neither is fair or consistent with your commitment to take full responsibility for the damage.”

In January, New Mexico officials filed a notice of intent to sue the EPA and Colorado. A lawsuit could come as early as mid-April.

Colorado would become entangled in the lawsuit, as Flynn and attorneys for his department suggest that the state is liable for the incident. He added that his office is working “in lockstep” with New Mexico Attorney General Hector Balderas’ office…

Colorado officials with the Department of Natural Resources have maintained since September that its Division of Reclamation, Mining and Safety was never on board with the EPA’s restoration plan.

The disagreement came to light after the Aug. 24 release of an internal investigation by the EPA that determined that the Colorado Division of Reclamation, Mining and Safety agreed to put drainage piping through the entrance of the mine, contributing to the spill.

But former Colorado Department of Natural Resources Director Mike King wrote in response to the EPA’s investigation: “DRMS did not have any authority to manage, assess, or approve any work at the Gold King Mine … Operations at Gold King were entirely under EPA management using EPA contractors on an EPA response action.”

For its part, Colorado state officials submitted a request to the EPA for reimbursements of approximately $315,000. The request is being evaluated.

Separately, the EPA made initial payments of $197,792 to La Plata County and $220,000 to San Juan County. Another $71,571 is pending to the San Juan Basin Health Department…

The EPA also is working with states and tribal governments to allocate $2 million for water-quality monitoring, according to Grantham. She added that the agency is addressing New Mexico’s $1.5 million request.

A spokeswoman for Hickenlooper said the office would “not weigh in on Mr. Flynn’s comments. We remain focused on the work at hand which is supporting our local communities.”

“From afar, there seems to be this strange dance that’s occurring between the state of Colorado and EPA, where on one hand you have certain agencies like CDPHE (Colorado Department of Public Health and Environment) who seem strongly aligned with EPA and … on the other hand, you have agencies like the Department of Natural Resources in Colorado who really seem to be disagreeing with EPA …” Flynn added. “I’m hopeful that Colorado will join the other downstream communities and really have that conversation so we can put in place some measures … to move forward.”

Location map for abandoned mine near Silverton. The Silver Wing is in the upper right corner of the aerial.

From The Denver Post (Bruce Finley):

House Republican lawmakers grilled Interior Secretary Sally Jewell Tuesday challenging her agency’s review of the Environmental Protection Agency’s Gold King Mine disaster — and Jewell maintained it was an accident.

“Do you want to amend that statement or retract it at all?” House Natural Resources Committee chairman Rep. Rob Bishop, R-Utah, said in a brief exchange during a three-hour budget oversight hearing.

Bishop showed an Aug. 7 e-mail from a Bureau of Land Management official in Colorado. That official informed superiors that “the EPA was attempting to relieve hydrologic pressure behind a naturally-collapsed adit/portal of the Gold King Mine. … While removing small portions of the natural plug, the material catastrophically gave-way and released the mine water.”

House staffers interpreted that e-mail to mean the EPA was “deliberately” removing small portions of a plug to relieve pressure when the Aug. 5 blowout occurred.

Jewell told Bishop she stood by her previous testimony to committee lawmakers and the conclusions of Interior’s Bureau of Reclamation technical review of EPA actions leading up to the mine disaster.

But Bishop said the e-mail “basically says the EPA was deliberately removing a small portion of the plug to relieve pressure in the mine.”

Jewell said the EPA work at the mine was “preparatory” for future work at the mine — rejecting notions that the EPA purposely triggered the blowout.

“It was an accident,”Jewell said…

Rep. Raul Grijalva, D-Arizona, noted that Jewell runs the Interior Department, which is separate from the EPA, and cannot compel the EPA to produce requested documents. Grijalva also put the 3 million-gallon Gold King deluge in the context of more than 330 million gallons leaking annually from the Gold King and other inactive mines in the area — “which the EPA was trying to fix.”

EPA officials on Tuesday declined to comment directly on House Republicans’ interpretation of the BLM e-mail. However, EPA spokeswoman Nancy Grantham referred to an EPA addendum to its internal review of the blowout that describes the EPA crew on Aug. 4 “slowly and carefully” scraping away “loose soil and rubble” near the mine opening to try to find blockage. On Aug. 5, the EPA crew “began additional excavation to identify the location of bedrock above and around the adit. Through this careful scraping and excavation, they were able to locate the bedrock.”

Then as state mining officials who had been at the scene moved to other nearby mining sites, the EPA document says, somebody at the site “continued to oversee the final cleanup work, which included clearing of the loose colluvium near the adit. Just prior to finishing, the team noticed a water spout a couple of feet high in the air near where they had been excavating above the top of the adit. Within a few minutes, the spout had turned into a large gush of yellow/orange water that ultimately resulted in a release of an estimated 3 million gallons.”

Location map for abandoned mine near Silverton. The Silver Wing is in the upper right corner of the aerial.

From Colorado Public Radio (Grace Hood):

Silverton and San Juan County leaders voted unanimously to pursue Superfund status on Monday to clean up the Gold King and other inactive mines in the area. The plan includes 46 mines and two settling areas.

“I think history has been made. This is one of the most important decisions ever made by county commissioner or town council,” said San Juan County Commissioner Scott Fetchenhier…

“There were two big concerns about Superfund that this community had,” Silverton Standard editor Mike Esper told CPR News January. “One: It would kind of foreclose on the future of returning to mining. And the other one, the big one: The bad publicity. We are totally reliant on tourism at this point. … But, the Aug. 5 blowout … kind of blew that argument out of the water. That game is over. We had the bad publicity by not having Superfund, and by not addressing the problem that’s only going to make the publicity worse.”

The spill also brought new and wider attention to southwestern Colorado’s inactive mines beyond the Gold King, some of which leach water laced with heavy metals like zinc and iron.

Fetchenhier worked closely with the EPA before the vote to secure certain assurances in writing. Those included making sure that town and county leaders have a seat at the table during the long remediation process. That’s where EPA officials decide which mines need work, and what that work will be.

The Superfund site could be finalized as soon as this fall. But it will take years of research before actual clean up can begin.

From the Farmington Daily Times (Steve Garrison):

The town of Silverton and San Juan County, Colo., will request that Colorado Gov. John Hickenlooper support a Superfund designation for 48 polluted mines in the mountains north of Silverton.

The request will come in the form of a letter to Hickenlooper, specifically asking him to work with U.S. Environmental Protection Agency officials to add the Bonita Peak Mining District — the name selected for the cleanup site — to the Superfund National Priorities List as a federal cleanup site.

Town and county officials have negotiated in the past months with the EPA regarding what mines and mine-related sources would be included for cleanup as part of the Bonita Peak Mining District.

The EPA states in a letter to Hickenlooper dated Feb. 19 that the 48 mines and mine-related sources dump arsenic, cadmium, copper, manganese, zinc, lead and aluminum into the Animas River at a rate of 3,740 gallons per minute or 5.4 million gallons per day.

Hickenlooper must inform the EPA by Feb. 29 whether he supports the designation.

The Superfund designation would allow the EPA to use funds appropriated by Congress to remediate the mining district and sue parties responsible for the contamination. The EPA’s Superfund appropriation in fiscal year 2015 was $1.1 billion, according to the U.S. EPA’s website.

Town and county officials voted unanimously in favor of the decision at a special meeting held here Monday afternoon.

Officials told the approximately 80 residents in attendance that voting in favor of the Superfund designation meant Silverton would continue to be involved in the remediation process.

From The Denver Post (Bruce Finley):

Reversing decades of opposition, Silverton and San Juan County leaders voted Monday to ask the state to pursue a Superfund cleanup of the Gold King and 45 other inactive mines contaminating headwaters of the Animas River.

Local leaders also are lining up Gov. John Hickenlooper and Sen. Michael Bennet as backup for dealing with the Environmental Protection Agency…

And local officials are demanding the EPA continue running a temporary water treatment plant above Silverton to reduce contamination until a final cleanup is done. Superfund cleanups typically take longer than a decade, depending partly on congressional funding.

“I was not in favor of Superfund. I still don’t like it. But if we don’t do it, it will be done for us,” Commissioner Ernie Kuhlman told 90 or so residents packing Silverton’s Town Hall before the vote.

“If we don’t make this move, they will, and we won’t have a seat at the table.”

Silverton’s seven town trustees and San Juan County’s three commissioners voted unanimously to send a letter to Hickenlooper urging him to ask the EPA to designate a “Bonita Peak Mining District” environmental disaster — the first step toward a Superfund cleanup…

The locals are pressing the EPA to commit to running a temporary water treatment plant above Silverton until a final cleanup is done and perhaps install another plant.

The EPA put in the plant to remove millions of tons of metals sludge still draining from the Gold King, although not from other nearby mines.

Silverton officials say they want the EPA to treat waste from those mines, too, during a multiyear Superfund process.
