How the pattern of trends across the tropical Pacific Ocean is critical for understanding the future #climate — NOAA

Click the link to read the article on the NOAA website (Sukyoung Lee, Kris Karnauskas, Ulla Heede, AND Michelle L’Heureus):

“How will climate change influence ENSO?” is one of the most common questions that we get on the ENSO Blog. While it makes sense folks want to know about the future changes in El Niño and La Niña—are they becoming more/less frequent? stronger? weaker? (1)—there is an even more basic question for future climate change that scientists are pondering:

How will trends in sea surface temperatures change across the equatorial Pacific Ocean?

It is very likely that the equatorial Pacific Ocean is going to warm up somewhere, but where exactly the strongest warming occurs is an important question. In particular, scientists want to know more about the geographic pattern of trends (2). By modifying the heating in the tropics, these changes will then have knock-on influences across the globe because, as we like to say, what happens in the Pacific does not stay in the Pacific!

The trend pattern is critical to understanding how the average or background atmospheric circulation of the tropical Pacific will change. Remember: the background state of the atmosphere in the tropical Pacific—the Walker Circulation—is fueled by the difference in sea surface temperature between the west and the east.

If temperatures warm faster in the western Pacific than in the eastern Pacific, the background tropical circulation could become more La Niña-like (3). But if the trend pattern changes as global temperatures continue to rise, meaning the east starts warming faster than the west in the future, the whole circulation across the tropical Pacific could become more El Niño-like. So actual ENSO events would be occurring against a different background climate than they do today. Yeah, it’s complicated.

How the sea surface temperature trend pattern will change has profound, world-wide implications for impacts such as regional changes in rainfall, where drought occurs, numbers of tropical cyclones, the rate of global mean warming, ocean biogeochemistry, etc. If you are trying to make decisions based on projections of the future, you need to know the answer. And, at this moment, there is some significant (perhaps even growing) debate that surrounds it.

Some scientists believe the recently observed trends suggest the models may be not reproducing some key mechanisms that are critical to provide accurate projections for the tropical Pacific Ocean. There are some long-standing biases in how models simulate the tropical Pacific that we have covered before on this blog, which could be playing some role.

To help us better understand this question, we have assembled a panel of three experts: Professor Sukyoung Lee at the Pennsylvania State University, Professor Kris Karnauskasat the University of Colorado- Boulder (who has previously written on the ENSO blog), Dr. Ulla Heede who is now a CIRES postdoctoral visiting fellow, following her PhD with Alexey Fedorov at Yale University. Keep in mind that this is not a complete representation of all possible perspectives on the matter, and there are some angles not represented by this group (4).

Questions and Answers

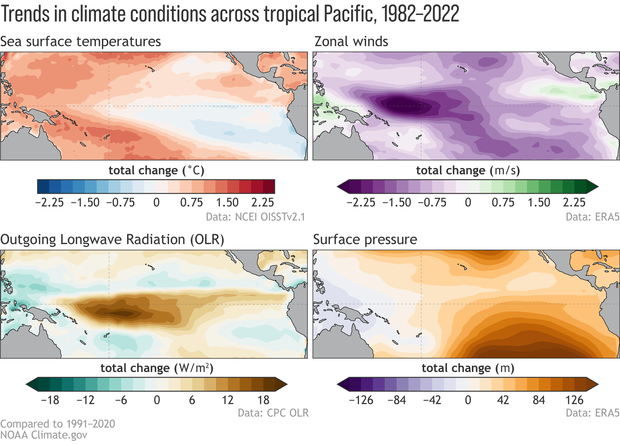

(A) So, what are the trends in sea surface temperature (and other variables) across the tropical Pacific Ocean? Why can’t you just measure past trends and assume they will continue? What’s the problem here?

UH: Since at least 1980, the tropical Pacific warming pattern has become more La Niña-like in the observations. This means that SSTs are warming faster in the western tropical Pacific Ocean than the eastern Pacific, and that surface winds are blowing stronger from east-to-west along the equatorial Pacific Ocean (5). This is opposite to the El Niño-like trend many climate models are projecting into the future because of greenhouse gases. Right now, there is a vigorous debate in the climate community whether the La Niña-like trend we are observing now is being driven by greenhouse gases or has natural causes. Because natural variations in the ocean circulation are slow, it is difficult to estimate the signal of global warming in a short observational record.

KK: It might sound simple, but quantifying those trends in the past observed record is more challenging than you might think! This is because the tropical Pacific is home to ENSO, which can either hide the long-term trends with its large variability, or make trends appear that are just temporary and could change later on.

UH: There is another reason why we cannot simply assume the recently observed La Niña-like trend will continue in the future. Mainly, we don’t know with enough certainty what the trend was before we had satellites monitoring the vast expanse of the tropical Pacific Ocean.

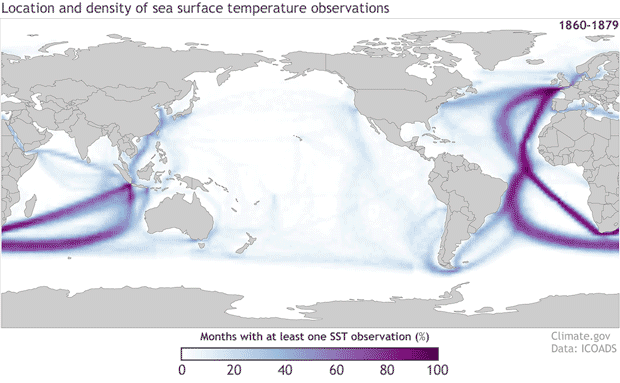

KK: Ulla is right, we have a tougher time reliably estimating the trends prior to the satellite era (late 1970s), and this problem gets even worse prior to the 1950s. Back then the instrumental data (mostly from ships) have gaps and changes in measurement protocols. Think of it like this: ideally, we would like to estimate the trend using as long of a record as possible (going back to the 1800s) but this is hampered by gaps in space and time. With 40 years of satellite data, we can be more confident that we’re accurately measuring the whole tropics, but with that shorter record, it is harder to distinguish trends from just a random pileup of ENSO events.

(B) Why is it so important we know the pattern of tropical Pacific trends? Who cares?

UH: I’d like to rephrase this question another way: What are the climate impacts associated with the tropical Pacific climate change? (6) The short answer is: a lot! This is because the tropical Pacific plays a key role in distributing energy and moisture to the rest of the planet, so any change in the tropical Pacific will be felt in other parts of the world. Let’s look at an example: in the last several decades we have observed drought conditions in many parts of the southwestern United States. This is likely partially related to the stronger tropical Pacific winds (more La Niña-like trends) we have recently observed. So, if the trends in the tropical Pacific changes, we might also see a change in these drought conditions.

SL: During La Niña, the atmospheric circulation over the middle latitudes is unusually wavier in the east-west direction (7). Surface temperatures can also be more variable as this blog recently pointed out. This increased waviness can mean the Arctic tends to be unusually warm and a large area of the North American and Eurasian continents tend to be unusually cold (8). Conversely, during El Niño, the atmospheric circulation is less wavy and the mid-latitude continents tend to be unusually warm and the Arctic tends to be colder than average.

Because climate change might have similar effects, we really need to know how the tropical Pacific sea surface temperature pattern and latent heating [the heating of the atmosphere that occurs when water vapor condenses into rain or clouds] will change. If it becomes more La Niña-like, the likelihood of undesirable conditions such as an even drier southwest U.S., as Ulla mentioned, or an amplified cold continents/warm Arctic pattern, would increase (8). Because most of the population resides in the mid-latitude continents, this clearly has implications for energy and water usage planning.

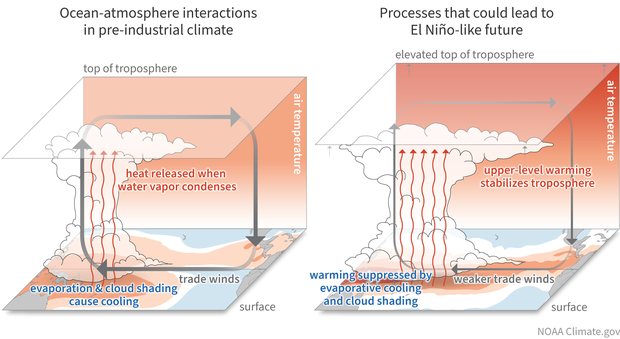

(C) Why is this happening? Why are future projections more El Niño-like while observations are more La Niña-like? What would even cause more El Niño- vs. more La Niña-like changes?

KK: Perhaps we should not be that surprised that future projections and past observations do not always give the same answer. Future projections are from imperfect computer models, and past observations are from imperfect attempts to measure the vast ocean. The causes of these possible changes have been hotly debated for decades, and it was like “love at first sight” when I was introduced to it as a postdoc!

SL: One explanation is “internal variability,” which essentially suggests that natural causes explain the recent La Niña-like trend. However, recent work by Dr. Richard Seager (here and here), among others, suggests models are either deficient at correctly estimating this internal variability or the response to greenhouse gases may not be right. Either outcome raises some doubts on the future projections of the tropical Pacific made by the current generation of climate models. Thus, it is important to understand the mechanisms that could drive El Niño-like vs. La Niña-like trends.

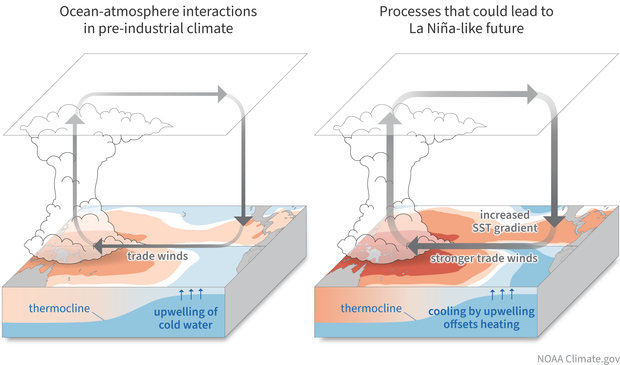

KK: One mechanism that could lead to more La Niña-like change is that cold water upwelling in the eastern Pacific may keep warming at bay — the idea here is that the coldest waters at depth in the ocean are slower to feel the effects of climate change and provide a break on local rates of warming (see figure above). Another mechanism that could lead to more El Niño-like change is that radiative effects of global warming [the upward transfer of heat away from the surface] would cause the tropical atmosphere to become more stable, slow down the Walker circulation, weaken the upwelling in the eastern Pacific, and lead to more warming there (see figure below).

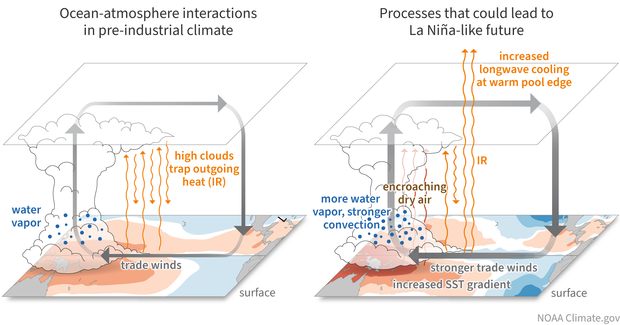

SL: A final possible mechanism may result in a La Niña-like future. The air over the western Pacific Ocean could become moister, promoting even stronger convection (showers and thunderstorms), and therefore strengthening the Walker circulation. At the same time, in the periphery of the Indo-Pacific warm pool, contraction of the cirrus cloud cover could cause more surface cooling by allowing more infrared radiation to escape to space, again helping to create a more La Niña-like sea surface temperature pattern (see figure below).

(D) Can we reconcile the seemingly different trends in the models versus the observations? Could they both be “right?”

 UH: It is entirely possible that the La Niña-like trends in the Pacific we are observing now are transient (short-term) and will reverse at some point in the next 100 years and start to look more like the modeled projections, with the eastern Pacific Ocean warming faster than the rest of the tropical oceans (9). Even if it is just transient, we need to understand these trends better: is it a response to global warming? (I tend to think so!), natural variability, or some mix of the two? However, this is difficult to diagnose using the models because the historical model simulations (run using observed historical forcings) and the observations still do not agree very well.

KK: It is fair to say both might be “right” in the very general sense that both sets of mechanisms are real and part of the fundamental physics controlling the climate system, but I don’t think we can say that both are right in terms of their relative importance. If the models and observations agreed on what *has* happened since the beginning of the Industrial Revolution, then that would be one thing, but they don’t. As for the future, it is possible that a mixture of physical processes can evolve, and some of Ulla’s work has really been groundbreaking in thinking along those lines. However, I suspect that as time goes on, we will learn that the models are still not representing some of the key ocean processes very well (10), such as the currents and upwelling, and their relation to changes in the wind—especially in places like the eastern equatorial Pacific Ocean where the thermocline is very shallow.

(E) How and when will scientists figure out where we are headed? What more could be done to help resolve this important question?

KK: Progress on the observational side might be slow. I don’t know how much more we can improve our ability to describe historical trends back to the 1800s. Even as different groups of scientists throw new statistical techniques to fill in the gaps, etc., the observational uncertainties aren’t being reduced very much. That said, we now have 40+ years of satellite data. When I started grad school, that was only 22 years. We probably have a few more decades to go, but we are getting closer to an acceptably long satellite record that can distinguish between ENSO, decadal variability, and long-term trends that are arising from human activities.

On the modeling side, heroic efforts are being done at modeling centers around the world to improve the representation of the physical processes. Perhaps gains will come from moving toward higher spatial resolution of the models as computers get cheaper and faster, which I suspect is critical for resolving upwelling, the shear between currents flowing in different directions, and the way that the friction from wind makes its way down into the ocean to influence the currents and mixing. I’m hopeful, and I’m glad I still have a few decades left to work on this fun and important problem!

SL: I agree with Kris that as the length of observational records increases, the impact of the internal variability on the trend diminishes, and therefore increasing the likelihood that the La Niña-like trends we’ve seen represents nature’s response to greenhouse gases. However, it is difficult to lengthen our historical record and infill where there are few measurements, so improving the accuracy of climate models is critical. Kris points out that we need to better resolve the ocean, but I think we also need to focus on how well tropical convection and rainfall is captured, which occur on scales that are unresolved by current model grid spacing. The current generation of parameterizationsstill warms the upper troposphere too aggressively and therefore weakens the simulated Walker circulation, leading to a more El Niño-like state.

For good reason, improving the parameterization is one of the most prominent research activities in climate science. At the same time, I believe that continued efforts should be made to develop new theories and to improve existing theories of fundamental mechanisms. In the meantime, for users who need to make decisions, it is important to recognize that there may be two different “storylines” for the tropical Pacific in the future, which they need to take into account.

Lead Editor: Michelle L’Heureux (NOAA CPC)

Footnotes:

(1) Tom has done a masterful job going over these questions. Check out his most recent post going over the latest IPCC findings related to ENSO and climate change. I also really like his older post using a dimmer switch metaphor.

(2) I’m avoiding using the term “zonal gradient” up top because it involves two fairly jargon-y terms that I think confuse most non-scientific readers. But, for those who are familiar, I’m talking about trends in the zonal gradient across the tropical Pacific Ocean. In other words, we’re interested in the relative rate of trends in tropical sea surface temperature, sea level pressure, rainfall, etc. in the zonal, or east-west, direction—i.e. comparing impacts between the eastern Pacific versus the western Pacific.

(3) Now some readers might ask “Wait, isn’t ENSO already tied to the pattern of sea surface temperatures across the tropical Pacific Ocean? El Niño is associated with ocean temperatures warming up (more than average) in the central and eastern equatorial Pacific and La Niña is linked to cooler ocean temperatures there. So how is this question about trend patterns any different from asking how ENSO itself will change?” Good question smart readers!

Changes in El Niño and La Niña are most strongly tied to seasonal (3-month) average anomalies in the climate system, and this seasonal variability has its own mechanismsthat result in the growth and decay of events over the span of a year or couple years. In contrast, what we are talking about here is the slower, smaller background changes in the tropical Pacific that occur over multiple decades or even centuries. Even though the timescales and mechanisms are separate and distinct from the seasonal ENSO cycle, folks often use the phrases “El Niño-like change/trends” or “La Niña-like change/trends” to describe these longer, gradual trends.

Although potentially confusing, these terms provide a handy shortcut because El Niño-like change means that these trends will look more El Niño-like over the tropical Pacific (relatively warmer in the central/east Pacific and cooler in the western Pacific) or La Niña-like (relatively cooler in the central/east Pacific and warmer in the western Pacific).

(4) I think Sukyoung Lee’s review paper (which available through open access) is a nice place to start reading about different ideas and approaches (disclosure: two ENSO bloggers are co-authors). There are also more papers that have been released since that review paper was assembled that are also worth checking out:

Hartmann, D. L. (2022). The Antarctic ozone hole and the pattern effect on climate sensitivity. Proceedings of the National Academy of Sciences, 119(35), e2207889119. https://doi.org/10.1073/pnas.2207889119

Wills, R. C. J., Dong, Y., Proistosecu, C., Armour, K. C., & Battisti, D. S. (2022). Systematic climate model biases in the large-scale patterns of recent sea-surface temperature and sea-level pressure change. Geophysical Research Letters, 49, e2022GL100011. https://doi.org/10.1029/2022GL100011

Dong, Y., Pauling, A. G., Sadai, S., & Armour, K. C. (2022). Antarctic ice-sheet meltwater reduces transient warming and climate sensitivity through the sea-surface temperature pattern effect. Geophysical Research Letters, 49, e2022GL101249. https://doi.org/10.1029/2022GL101249

(5) For example, one recent study has shown that the ocean surface near the Galapagos Islands in the far eastern equatorial Pacific cooled down by about a half degree Celsius over the past 40 years.

(6) It is often useful to make a distinction between climate change and climate impacts. Climate change refers to the ‘big picture’ of how earth’s climate is changing in response to more greenhouse gasses in the atmosphere. This includes questions like how much the surface of the planet is warming, how the jet stream is changing, how fast the ice sheets are melting, and – you guessed it – how the tropical Pacific is changing. Climate impacts are the consequences of climate change that impacts humans locally. For example, climate impacts could be increased droughts, more frequent forest fires, flooding of coastal cities, stronger hurricanes making landfall.

(7) The reason why La Niña events bring about wavier conditions is because the latent heat released during cloud formation in the tropics is mostly confined to the western part of the tropical Pacific. The latent heating generates so-called Rossby waves which are responsible for the aforementioned waviness (see Figure 6 in Lee et al., 2022). If the latent heating is uniform in the east-west direction, the heating cannot generate Rossby waves. Therefore, the more east-west confinement of the latent heating, the more the waviness, which has profound impacts on temperature and precipitation locally around the globe. The pattern of the future tropical Pacific is not necessarily the same as either El Niño or La Niña.

(8) For more details see:

Lee, S. (2012). Testing of the Tropically Excited Arctic Warming Mechanism (TEAM) with Traditional El Niño and La Niña, Journal of Climate, 25(12), 4015-4022.

Clark, J. P., & Lee, S. (2019). The role of the Tropically Excited Arctic Warming Mechanism on the warm Arctic cold continent surface air temperature trend pattern. Geophysical Research Letters, 46, 8490– 8499. https://doi.org/10.1029/2019GL082714

(9) Here are some papers that delve on the issue of future Pacific warming:

Heede, Ulla, and Alexey Fedorov. 2021. ‘Eastern Equatorial Pacific Warming Delayed by Aerosols and Thermostat Response to CO2’.

Heede, Ulla K., Alexey V. Fedorov, and Natalie J. Burls. 2020. ‘Timescales and Mechanisms for the Tropical Pacific Response to Global Warming: A Tug of War between the Ocean Thermostat and Weaker Walker’. Journal of Climate, April. https://doi.org/10.1175/JCLI-D-19-0690.1.

Wu, Mingna, Tianjun Zhou, Chao Li, Hongmei Li, Xiaolong Chen, Bo Wu, Wenxia Zhang, and Lixia Zhang. 2021. ‘A Very Likely Weakening of Pacific Walker Circulation in Constrained Near-Future Projections’. Nature Communications12 (1): 6502. https://doi.org/10.1038/s41467-021-26693-y.

Ying, Jun, Matthew Collins, Wenju Cai, Axel Timmermann, Ping Huang, Dake Chen, and Karl Stein. 2022. ‘Emergence of Climate Change in the Tropical Pacific’. Nature Climate Change, March, 1–9. https://doi.org/10.1038/s41558-022-01301-z.

(10) Karnauskas, K. B., J. Jakoboski, T. M. S. Johnston, W. B. Owens, D. L. Rudnick, and R. E. Todd, 2020: The Pacific Equatorial Undercurrent in Three Generations of Global Climate Models and Glider Observations. J. Geophys. Res.–Oceans, 125(11), e2020JC016609, doi: 10.1029/2020JC016609.

This paper analyzed a ton of climate models, from the ones that were state-of-the-art a dozen years ago (CMIP3 / IPCC AR4) to the most recent generation of CMIP6 models that fed into the 6^thIPCC Assessment Report. While the currents along the equatorial Pacific have improved over time, there is still a ways to go, and this has implications for how SST changes.

Coats, S., and K. B. Karnauskas, 2018: A role for the Equatorial Undercurrent in the ocean dynamical thermostat. J. Climate, 31, 6245–6261, doi: 10.1175/JCLI-D-17-0513.1.

This paper analyzed a recent generation of global climate models (CMIP5 / IPCC AR5) and found, among other things, that the relationship between the wind stress and the underwater currents does not match observations in the eastern equatorial Pacific, which has implications for how SST changes in that climatically important region.
