A rare sight: Water shoots out of Glen Canyon Dam’s river outlets or “jet tubes” during a high-flow experimental release in 2013. Typically all of the dam’s outflows go through penstocks to turn the turbines on the hydroelectric plant. The outlets are only used during these experiments, meant to redistribute sediment downstream, and when lake levels get too high. Spillways are used as a last, last resort. The river outlets may be used again in the not so distant future: Once Lake Powell’s surface level drops below 3,490 feet, or minimum power pool, water can no longer be run through the turbines and can only be sent to the river below via the outlets. This is cause for concern because the river outlets were not built for long-term use. Jonathan P. Thompson photo.

Click the link to read the article on The Land Desk website (Jonathan P. Thompson):

If you read my impressions from a visit to Hoover Dam, you’ll remember that I ended it with these sentences describing the spillway at the dam (not the dam, itself): “It’s beautiful in the way functional structures can be. And yet, it no longer serves any real function—and never will—except, perhaps, as a reminder of what was.”

When the venerable LA Times environment reporter Sammy Roth tweeted out the description, this was one of the responses:

Okay, well, I’m not sure how it’s “arrogant” to say that a spillway will never be used again, but a subsequent Twitter discussion fleshed out the bigger point he was trying to make: Just as climate change can exacerbate drought, warming can also trigger extremely abundant precipitation, leading to catastrophic flooding a la 1983, which could fill up the reservoirs again and put the spillways back into use. Others piped in, as well, pointing to Lake Oroville in California, which went from nearly empty to overflowing and back to empty over the course of several years.

It got me thinking that maybe I had been too rash in asserting the spillways would never be needed again. After all, anything’s possible: We know that the 1911 Flood sent around 300,000 cubic feet per second or more past the current Glen Canyon Dam site (compared to the 1983 flows of 120,000 cfs), and paleoflood investigations suggest deluges in the distant past have topped out above 600,000 cfs—a Biblical sort of event.

Could a climate change-induced megaflood of this magnitude reverse the effects of a climate change-induced megadrought and fill Powell and Mead back to the brim?

It seems unlikely.

The issue here is one of scale. Lake Powell and Lake Mead are both gargantuan in size. Powell is 186 miles long when full with over 1,900 miles of coastline. It can store nearly 27 million acre feet (af) of water (minus a million or two due to siltation). Contrast that to Lake Oroville, with its relatively minuscule 3.5 million acre feet of capacity.

Powell currently has less than 6 million acre feet in it, leaving 20 million acre feet of empty storage that needs to be filled before water would reach the spillways. Lake Mead’s numbers are similarly huge.

Now, the monster flood of 650,000 cfs would dump 1.3 million acre feet of water per day into the reservoir. So, you’d need two weeks of this to fill up Powell—and Lake Mead would still have 20 million acre feet of unused capacity, meaning you’d need another two weeks of deluge to fill it up. Megafloods usually don’t last that long—the 1911 Flood brought up river levels for several days, not weeks (and Colorado river flows for the entire year were unremarkable). And besides, 650,000 cfs isn’t going to sneak up on the dam operators. They’d see it coming and start releasing water from the reservoirs ahead of time, obviating the need to use the spillways.

Conclusion: A sudden megaflood is not going to cause either Mead or Powell—and certainly not both of them—to overflow.

But what about a string of really wet years, when record-setting snowfall is followed by torrential summer rains? We know this is possible, because it’s exactly what happened in 1983 through 1986, the last time the spillways were used. We also know, from streamflow reconstructions back to the 8th Century, that the wet and wild 1980s were not entirely unprecedented. They were, however, an anomaly, and they are among the wettest four consecutive years on record.

So, let’s assume a repeat. Would that fill the dams to overflowing and put the spillways back to use? Perhaps.

Here are the numbers as of March 30:

  • Lake Powell Current storage: 5.8 million acre feet (MAF)
  • Full capacity: 27 MAF
  • Minimum annual release: 8.23 MAF
  • Annual evaporation: .4 MAF
  • Lake Mead current: 8.6 MAF
  • Full capacity: 28.2 MAF
  • Minimum annual release: 9.6 MAF
  • Annual evaporation: .6 MAF
  • Las Vegas withdrawal: .3 MAF
  • These were the actual inflows into Lake Powell during the super soaker years from 1983-1986, also known as the only time the spillways at Glen Canyon and Hoover Dams were actually used. It didn’t go so well, but we’ll get to that in a minute.

  • 1983: 20 MAF
  • 1984: 21.6 MAF
  • 1985: 18.2 MAF
  • 1986: 18.4 MAF
  • To put this in context, consider inflows during the four biggest water years of the last two decades:

  • 2011: 16.3 MAF
  • 2008: 12.4 MAF
  • 2019: 11.7 MAF
  • 2005: 11.4 MAF
  • And, just to give you an idea of the dismal state of the Colorado River currently:

  • 2021: 4.03 MAF

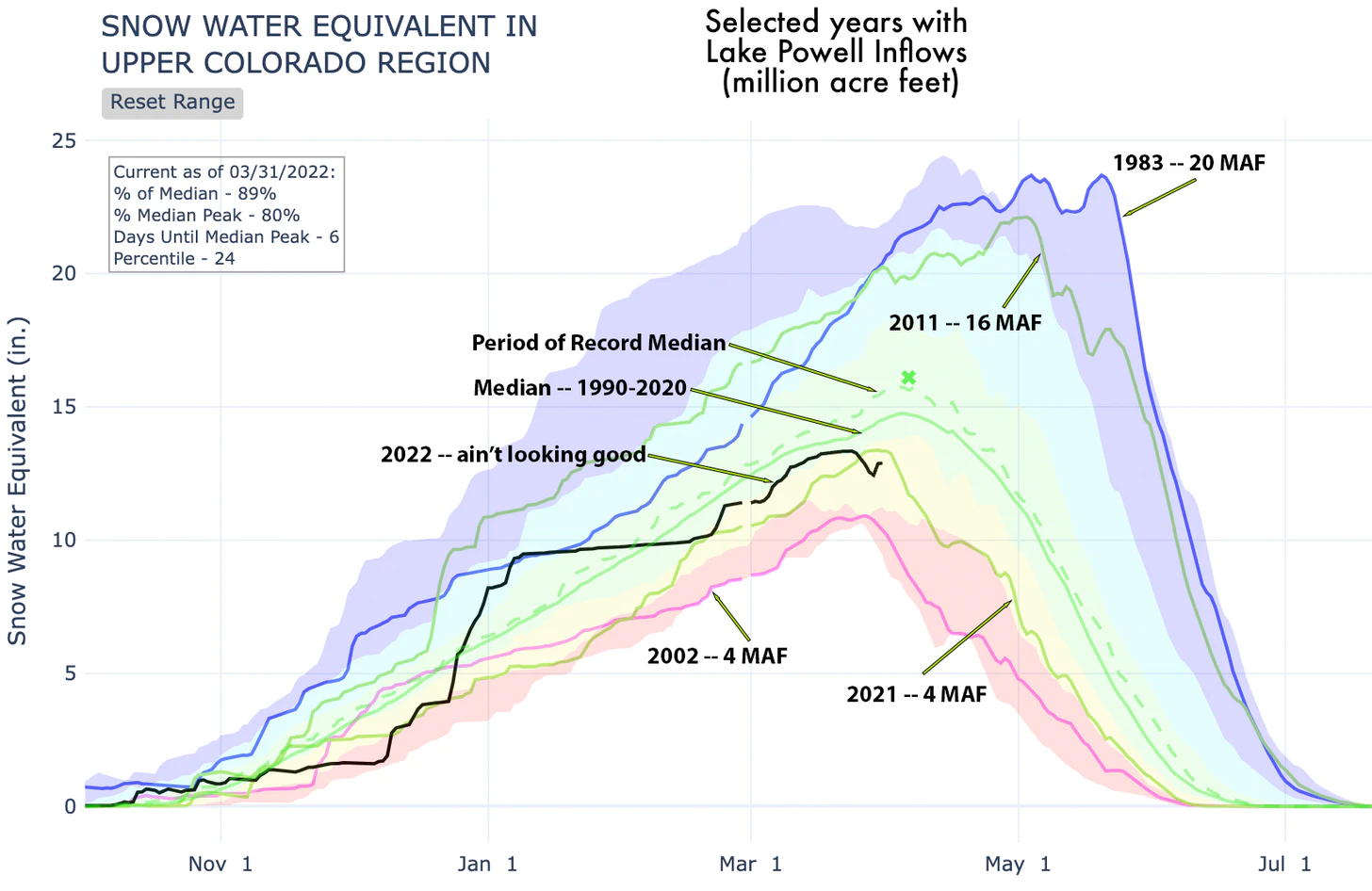

  • 1983, the last time the spillways at Glen Canyon and Hoover Dams were used, was a remarkable year in many ways. The winter started out above average in terms of snowfall, but not wildly so. Then, in March, it started dumping and didn’t stop until the end of May (snowpack peaked on May 20, more than a month later than normal). The temperature shot up rapidly followed by heavy June rains. Glen Canyon’s operators weren’t expecting the deluge and failed to leave enough room in Lake Powell to accommodate it. Source: NRCS and USBR.

    Glen Canyon Dam operators are required to send at least 8.23 MAF downstream to Lake Mead each year, but usually only go above that when Powell gets close to full and “equalization” kicks in—it’s basically a “fill Powell first” philosophy. The following Glen Canyon release numbers are guesses based on that. Of course, once Lake Powell is full, then releases would equal inflows.

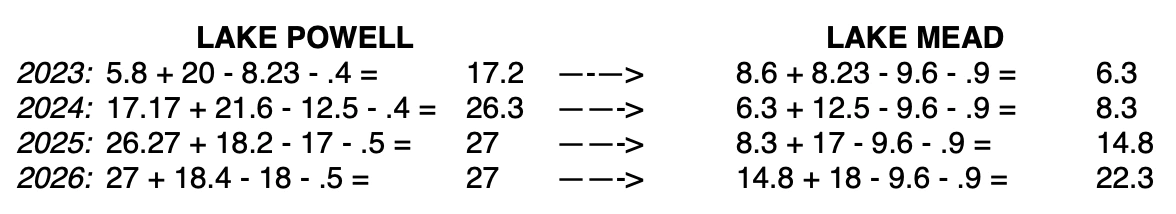

    The equation, then, is:

    Begin Water Year Storage + Inflows – (evaporation+withdrawals) = End WY Storage

    So, at the end of the nearly unprecedented string of wet years, Lake Powell would be full but Lake Mead still would need another 6 million acre feet of water before the spillways could be used.

    Let’s just say I’m feeling better about my spillway “never again” comment.

    There is another possible scenario: Four years of giant snow/water years followed by the monster megaflood—the double whammy. That certainly would fill up both Powell and Mead and could lead to a 1983 situation all over again, or worse.

    But that doesn’t necessarily mean the spillways would be utilized again. In fact, dam operators will do everything they can to avoid it because they really aren’t intended to be used. In 1983 it wasn’t the big water that forced the spillways into use, it was the dam operators’ failure to prepare for the sudden runoff by releasing enough water beforehand. And that stemmed from faulty weather forecasting.

    When the runoff did hit the already full reservoir, it caused the water to spill into the spillways, which are actually tunnels through the cliffs on either side of the dam. A phenomenon called cavitation occurred, in which vapor bubbles in the water collapse, sending shockwaves through the tunnels. That tore huge gouges into the concrete lining and then the rock, which in turn threatened the dam, itself. Plywood extenders were added to the top of Glen Canyon Dam’s spillway gates to stop the water from entering them.

    So, even in the extraordinarily unlikely event of a double whammy 1983 water year + a megaflood, dam operators will be ready for it. So, I’m standing by my assertion as rash as it may be: The spillways on both Glen Canyon and Hoover Dams are obsolete, except maybe as extreme skateboarding chutes.

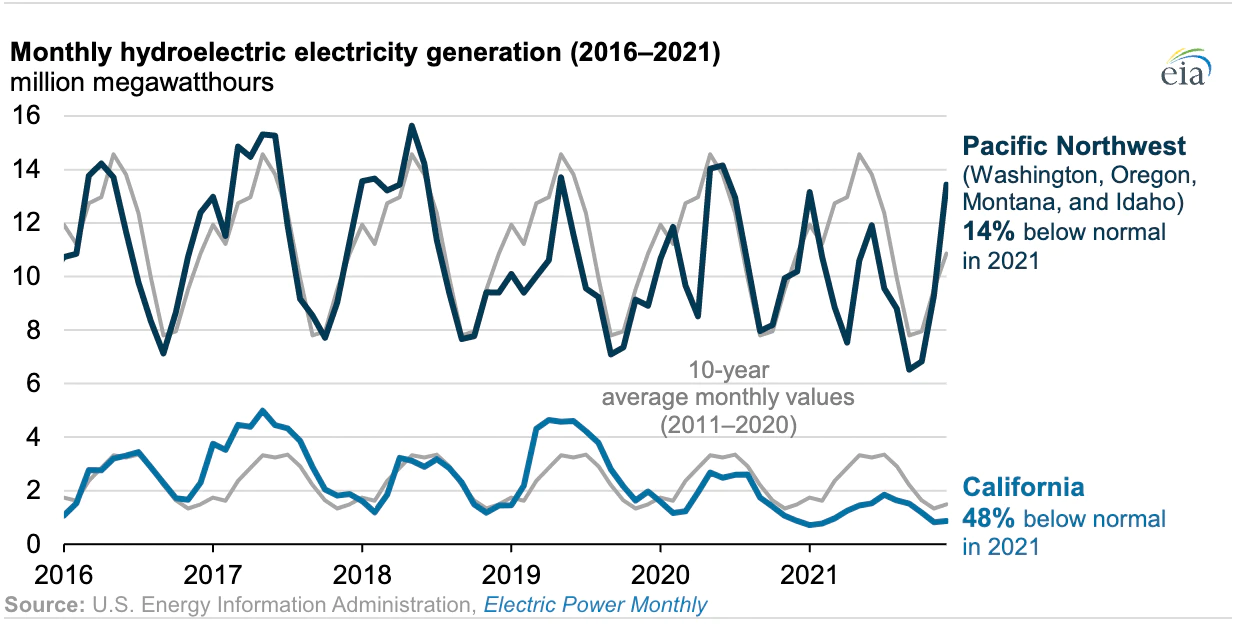

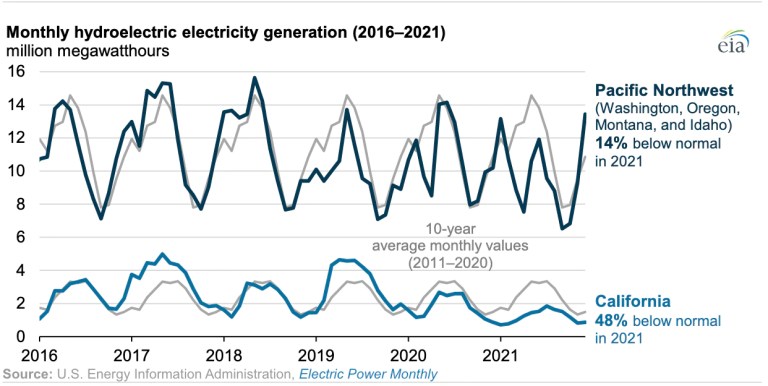

    In kinda related news, the federal Energy Information Administration published figures on the effects of last year’s drought on hydropower generation. As expected it was kind of grim, with California facilities only producing about half of what they normally would.

    But it’s okay, right? I mean that was last year and now the drought’s over, so … Huh? What’s that? Oh. Oh, dear. This just in: Snowpack levels in the Sierras are between 30 percent and 44 percent of average for this date. Unless the storms come quick and bountiful, it’s going to be another year of diminished hydropower in the Golden State. Not good.

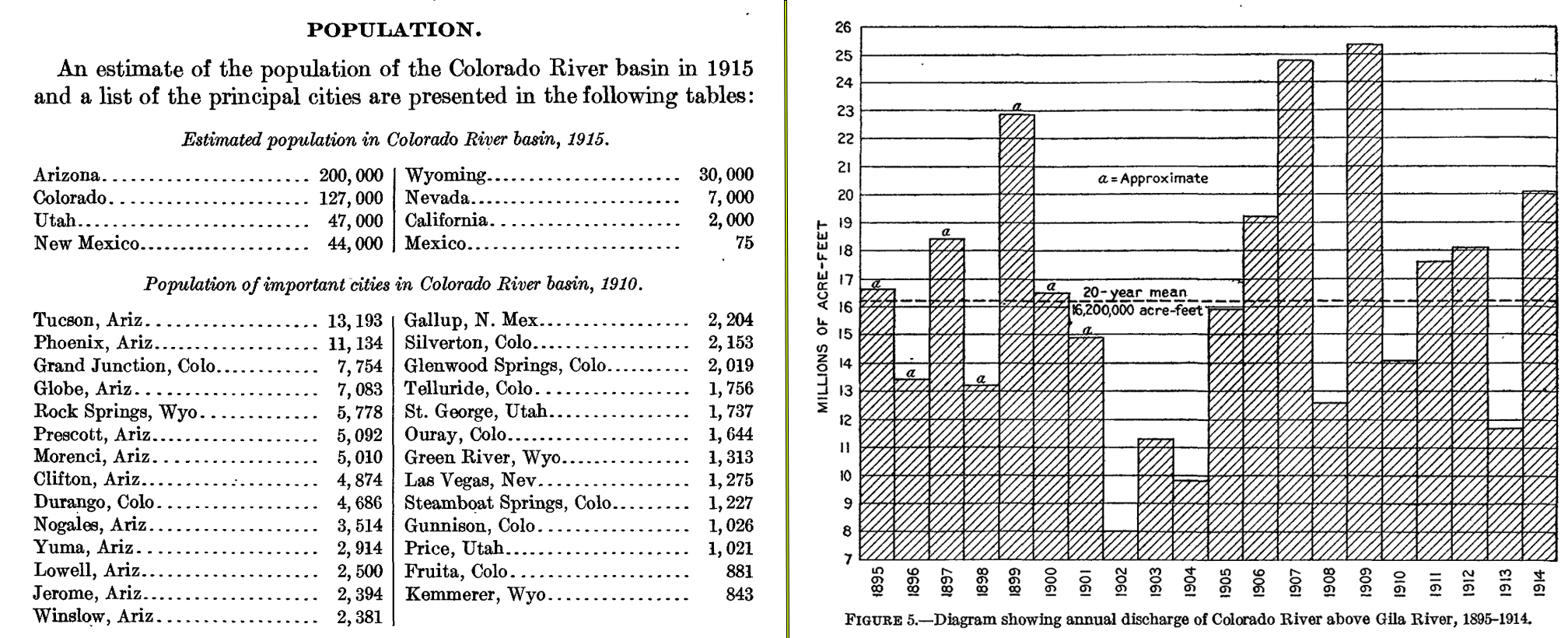

    We promised we’d be doing various Colorado River Compact-related coverage this year, so here are a couple pretty fascinating tidbits I found in a 1916 USGS paper on the Colorado River. On the left are population figures for major towns and cities in the Colorado Basin and for the portion of states lying within the Basin. On the right are annual streamflows for the Colorado River above its confluence with the Gila. Turns out the average for that time period was a bit higher than the historic mean, leading Compact negotiators to parcel out more water than actually existed in the river. Whoops!

    Population and streamflow at the time the Colorado River Compact was being negotiated. Credit: The Land Desk
